Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	dies in gear, help! 04/02/14 at 11:54:39 Just put a fresh battery in, wired it up, starts up just fine but dies when I put it in gear, 1st 2nd..doesnt matter. So what completely worthless POS safety equipment is causing this retardedness.
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: dies in gear, help! Reply #1 - 04/02/14 at 12:04:55 neutral or kickstand switch or the relay above the carb. or a short, sunspots or a gravitation shift.
Back to top	Versey's Place Tech Section Index IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in gear, help! Reply #2 - 04/02/14 at 12:17:06 Lol thnx Versy
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: dies in gear, help!
Reply #3 - 04/02/14 at 12:28:55

Yep....whenever that neutral light on the dash goes out (since you put it in gear).....the safety stuff tells the bike to shut down.

It is most likely the side stand switch. Take off the painted left side body cover, locate the connector that leads up from the sidestand switch. Disconnect the connector and either use a tester to see if the side stand switch is working - or - Put a jumper wire across the other side of the connector and see if the bike stays running when you put it in gear.

Back to top

Someday I will be old......But not today!

IP Logged

Boogieman

Senior Member

Offline

Bang! Bang!

Posts: 284
NORCAL
Gender: male

Re: dies in gear, help!
Reply #4 - 04/02/14 at 14:49:41

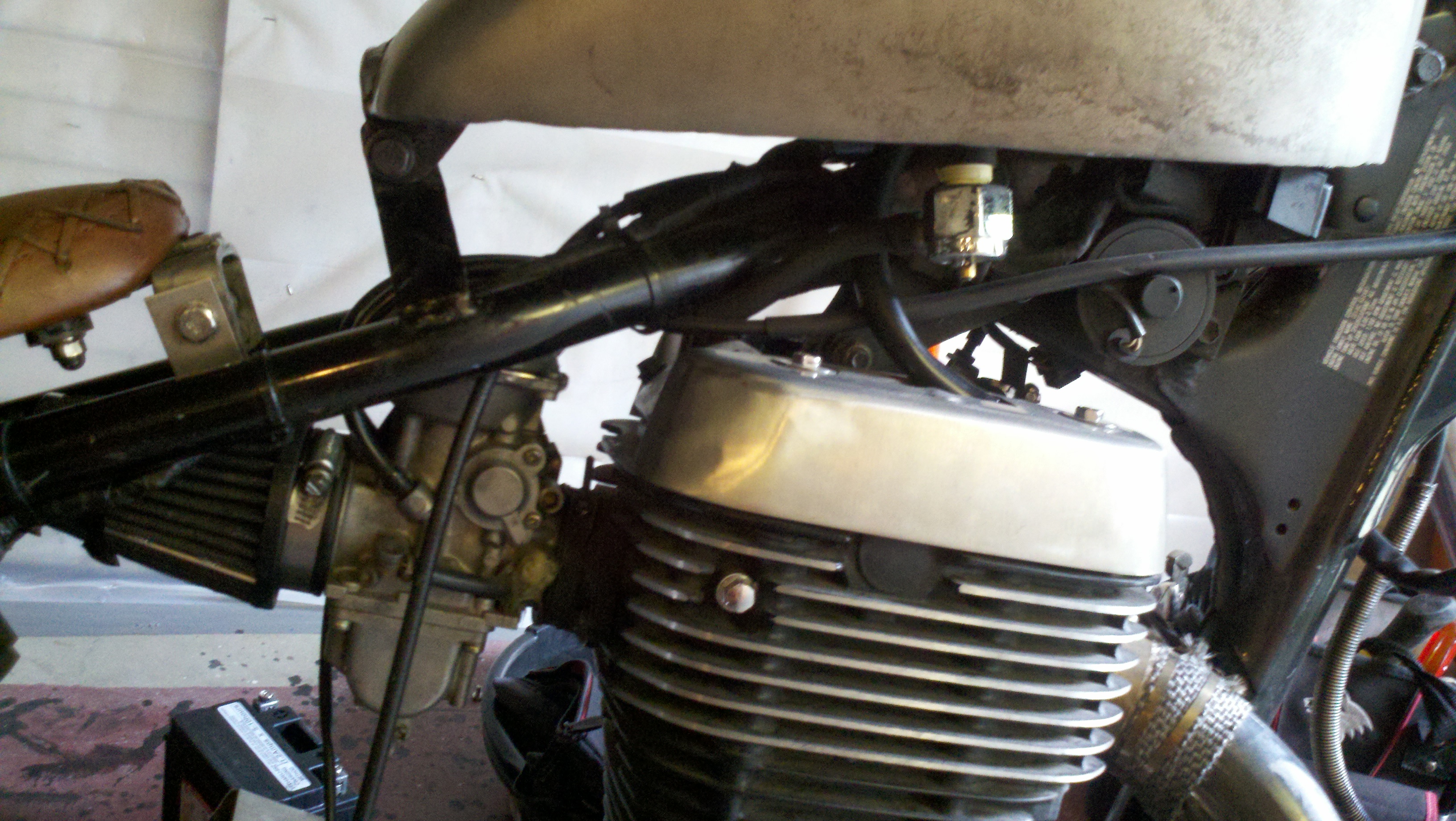

I'm so dumb. why haven't I gotten a manual. relay above the carb? Whats it look like? Above my carburetor is the tank. Stuffed in the battery area there's a cylinder looking thing, a little black box that just sorta hangs out, attached only by wires. That's probably the relay. Can u confirm?

Dave my bike is all switched up. I don't have a dash or a speedometer or a tachometer. Disabling that stupid sidestand switch was like one of the first things I did. And when I find out what is causing this problem I'm going to rip that out too.

Back to top


'03 LS 650 bobber - Highly modified...crashed it.

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: dies in gear, help!
Reply #5 - 04/02/14 at 15:45:20

OK...until you get your manual you can do some exploring in the Technical Section.....this time in the electrical section.

Here is a lesson on the electrical system and what stuff looks like:
http://suzukisavage.com/cgi-bin/YaBB.pl?board=tech;action=display;num=1099317926

And here is a link to the wiring diagram:
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1294779818

Back to top

Someday I will be old......But not today!

IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in gear, help! Reply #6 - 04/02/14 at 16:09:19 Thank you so much for giving me links. An explanation of why I can't just search for it myself would be superfluous and lengthy.
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged

WD Serious Thumper 2005 No Login Offline Professional "scooter trash". Posts: 5207 Rosemark TN Gender:	Re: dies in gear, help! Reply #7 - 04/02/14 at 17:20:30 Boogieman wrote on 04/02/14 at 16:09:19: Thank you so much for giving me links. An explanation of why I can't just search for it myself would be superfluous and lengthy. Would make perfect sense to me, I've been on this site for 11 years and still can't work the so called search function.
Back to top	On 2 wheels since 7/87 Black and Chrome 2003 1950s style custom IP Logged

ToesNose Serious Thumper Offline Pardon me, do you have Hot Sauce? Posts: 1993 Mooresville, NC Gender:	Re: dies in gear, help! Reply #8 - 04/03/14 at 04:19:11 I've found the easiest and quickest way to find anything on the site is to do a search from Google home page, just enter "suzukisavage.com" along with what ever you are searching for
Back to top	The Suzuki LS650, bringing Miles of Smiles everywhere! IP Logged

shorty Serious Thumper Offline be careful out there gentlemen Posts: 547 southern NM Gender:	Re: dies in gear, help! Reply #9 - 04/03/14 at 05:11:32 the (2-wire) connector is under the seat, (1) green wire (1) black wire.. short it with a jumper to bypass switch (bike will think kickstand is up)
Back to top	« Last Edit: 04/03/14 at 13:29:49 by shorty » motorcycles have been my main transport since 1974 IP Logged

1st2know

Senior Member

Offline

Currently between
Savages

Posts: 295
Seattle, WA
Gender: male

Re: dies in gear, help!
Reply #10 - 04/03/14 at 18:44:34

ToesNose wrote on 04/03/14 at 04:19:11:

I've found the easiest and quickest way to find anything on the site is to do a search from Google home page, just enter "suzukisavage.com" along with what ever you are searching for Wink

Another search trick - try this:
site:suzukisavage.com kickstand switch
The "site:suzukisavage.com" limits the search to only this wonderful site.
For Saturday night fun, I like this:
site:suzukisavage.com cam chain
Then, I hit the images tab, crack open a beer and take it all in.
