SuzukiSavage.com - Battery relocation to muffler bracket help

uigiroux

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 227

Re: Battery relocation to muffler bracket help
Reply #60 - 04/09/14 at 06:47:46

LANCER wrote on 04/09/14 at 05:02:32:

Are you going to build in some panels similar to what DiamondJim did ?

I think I know what your referring to but can you link the thread for what your referring too? If your referring to covering up the old battery box location mount with sheet metal and having it follow the frame up, I've been working on a to scale piece of cardboard and will probably mount the rectifier to it. If that's not what you mean then I'll need a link.

Back to top

IP Logged

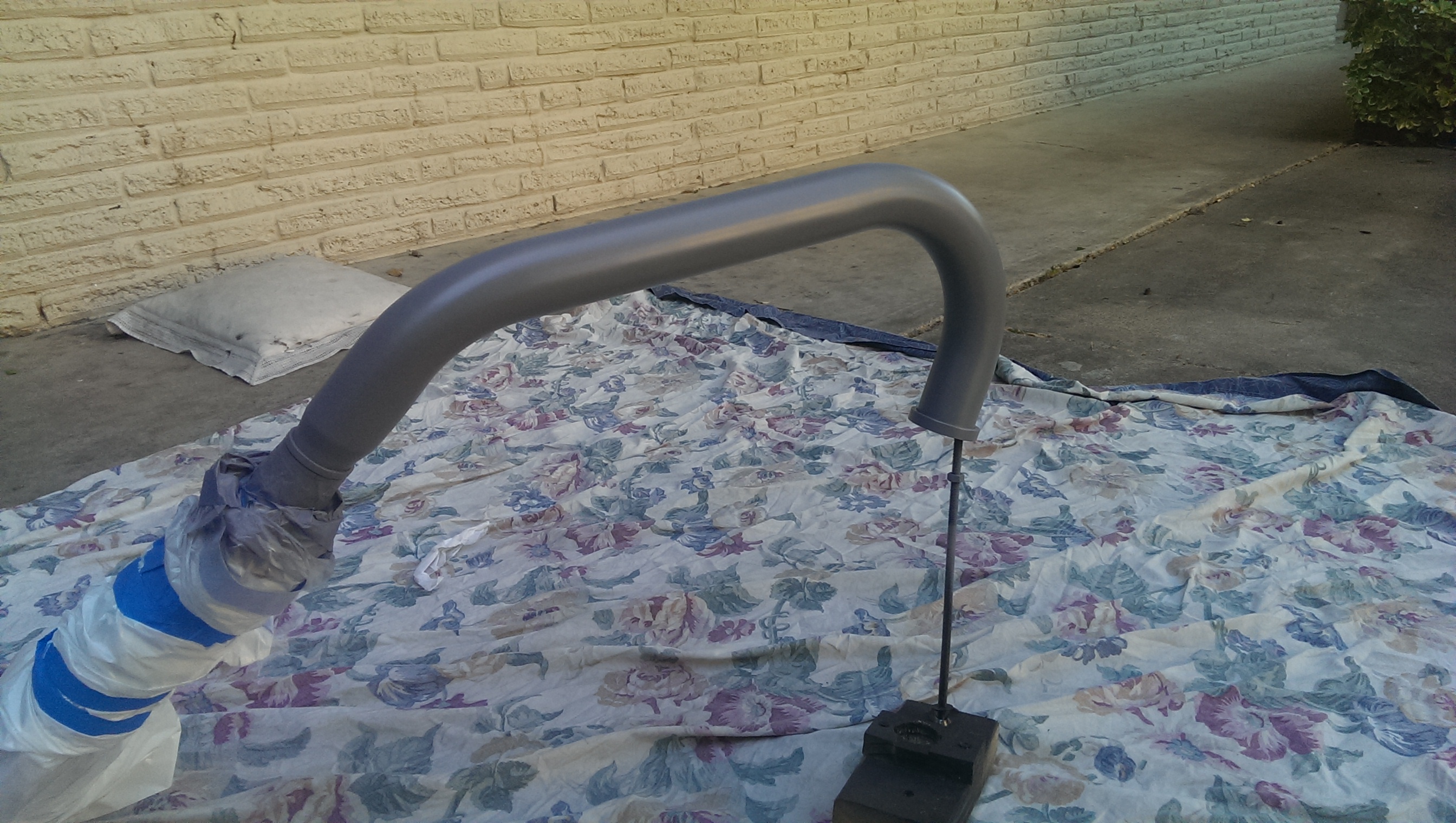

uigiroux Full Member Offline SuzukiSavage.com Rocks! Posts: 227	Re: Battery relocation to muffler bracket help Reply #61 - 04/09/14 at 15:10:24 Had some free time today so I finally took the plunge and am getting rid of my faded out exhaust header, spent an hour sanding it down and have the primer on, about to apply the matte black color and then a coat of clear for a slight satin finish, but not glossy. More pics to come.
Back to top	1397081418300.jpg IP Logged

LANCER

Serious Thumper
Alliance Member

Offline

Savage Beast
Performance Parts

Posts: 10666
Oklahoma
Gender: male

Re: Battery relocation to muffler bracket help
Reply #62 - 04/10/14 at 04:30:06

uigiroux wrote on 04/09/14 at 06:47:46:

LANCER wrote on 04/09/14 at 05:02:32:

Are you going to build in some panels similar to what DiamondJim did ?

I think I know what your referring to but can you link the thread for what your referring too? If your referring to covering up the old battery box location mount with sheet metal and having it follow the frame up, I've been working on a to scale piece of cardboard and will probably mount the rectifier to it. If that's not what you mean then I'll need a link.

That sheet metal is what I was referring to.

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Battery relocation to muffler bracket help
Reply #63 - 04/10/14 at 04:39:05

uigiroux wrote on 04/09/14 at 15:10:24:

Had some free time today so I finally took the plunge and am getting rid of my faded out exhaust header, spent an hour sanding it down and have the primer on, about to apply the matte black color and then a coat of clear for a slight satin finish, but not glossy. More pics to come.

I didn't know you could get High Temperature Clear? Shocked

Back to top

Someday I will be old......But not today!

IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Battery relocation to muffler bracket help Reply #64 - 04/10/14 at 12:12:51 VHT makes a clear high-temp paint. I've never tried it though.
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

uigiroux

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 227

Re: Battery relocation to muffler bracket help
Reply #65 - 04/10/14 at 13:32:11

Really bummed out, my header looked perfect, but I guess I didn't apply enough to the top end where it gets hottest and it essentially burned through and so it looks great on the middle but the upper and end part has a grayish primer color, so I think I need to wait a week before I can apply more coats, but hopefully that will get it looking right... Any suggestions on how to fix this?

Back to top


IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Battery relocation to muffler bracket help Reply #66 - 04/10/14 at 14:05:32 You need to cure high-temp paint slowly. Ride for a few miles and then shut it down to cool for a few hours. Then, ride again a little longer, etc. You need to cure the paint in stages.
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Battery relocation to muffler bracket help
Reply #67 - 04/10/14 at 14:11:22

Kris01 wrote on 04/10/14 at 14:05:32:

You need to cure high-temp paint slowly. Ride for a few miles and then shut it down to cool for a few hours. Then, ride again a little longer, etc. You need to cure the paint in stages.

Not just slow....painfully slow. I first set the freshly painted part in the sun for a day or two. Then when it is mounted I start the engine and let it run for 10 seconds....shut it off and let it cool down. Then the next time I let run 15 seconds and shut it off. Each time I let it run a bit longer. Slow curing makes all the difference.....you can't just fire it up and go for a ride. If you can find someone with an oven like a powder painter....have them cure it for you.

Back to top

Someday I will be old......But not today!

IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Battery relocation to muffler bracket help Reply #68 - 04/10/14 at 14:13:23 Speaking of ovens...don't use the one in your kitchen. You want to use an oven dedicated to curing paint.
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Battery relocation to muffler bracket help Reply #69 - 04/10/14 at 14:21:49 get a hair dryer or the industrial version
Back to top	Versey's Place Tech Section Index IP Logged

uigiroux

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 227

Re: Battery relocation to muffler bracket help
Reply #70 - 04/10/14 at 14:27:24

I followed the instructions on the can. After letting it dry for an extra hour longer than required I ran at idle for 10 min, then cool for 20 min. Then run at idle for 20 min, cool for 20 min. Then run around at normal speeds (I just drove around for said time) for 30 min and let cool then your done. That's what the cans say and their website. Also, it started to lose color within the first curing time.

Back to top

IP Logged

uigiroux Full Member Offline SuzukiSavage.com Rocks! Posts: 227	Re: Battery relocation to muffler bracket help Reply #71 - 04/10/14 at 14:29:34 Also on the can it says to wait a week before applying more coats. Do I have to wait a week? Do I have to do the whole thing over again or can I just wet sand the bad parts and give them a heavier coat then the other good portion and then do the ultra slow curing?
Back to top	IP Logged

uigiroux Full Member Offline SuzukiSavage.com Rocks! Posts: 227	Re: Battery relocation to muffler bracket help Reply #72 - 04/10/14 at 19:09:17 verslagen1 wrote on 04/10/14 at 14:21:49: get a hair dryer or the industrial version Would a heat gun like one used for shrink wrap work? Also heard of using a blow torch to heat up the inside of the pipe...?
Back to top	IP Logged

kochic Junior Member Offline SuzukiSavage.com Rocks! Posts: 80 st-jean-de-matha, qc Gender:	Re: Battery relocation to muffler bracket help Reply #73 - 04/21/14 at 10:28:58 I had time to work on my battery bracket. At first i modified the muffler bracket but was not happy with it. I made one from scrap metal.I still need to fab a hold down strap. Marc
Back to top	« Last Edit: 04/21/14 at 17:06:00 by kochic » IP Logged

uigiroux Full Member Offline SuzukiSavage.com Rocks! Posts: 227	Re: Battery relocation to muffler bracket help Reply #74 - 04/21/14 at 10:32:30 Oh I really like that! I was wanting to do something where it would require a whole new set up for the muffler bracket, but don't have the resources at the moment. Yours looks much easier to access then mine.
Back to top	IP Logged
