can I grind this tab off my frame?
01/08/14 at 14:58:29

I've been busy building myself a motorcycle table. Today I tried pushing my savage up the rather steep ramp I built for it and found that this triangular section of the frame catches on the ramp at the leveling point. I got under the bike with the torch and can't actually see what function this bit of the frame has? the front footpeg mounts are independent of this bit so what is it actually for? Is it to re-enforce things generally in the footpeg area? Can I just grind the triangular point off it and job done?

Back to top


« Last Edit: 01/08/14 at 16:28:11 by strang »

scrambler build: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1420917964/15

IP Logged

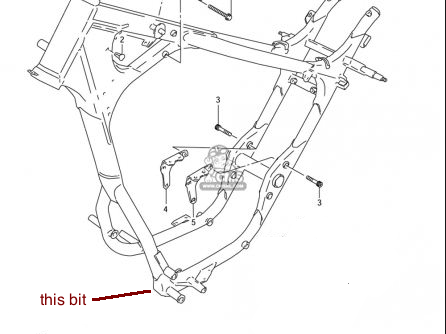

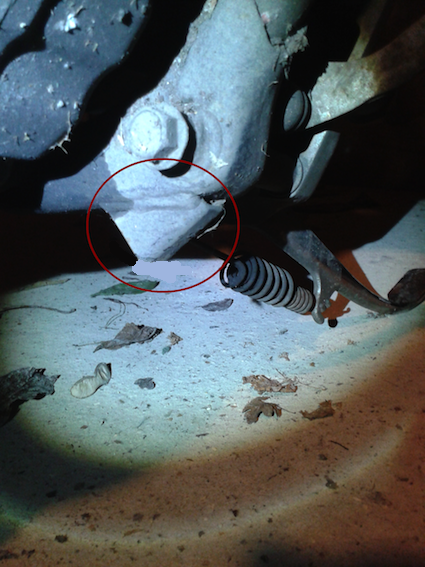

strang Senior Member Offline Posts: 387 london Gender:	Re: can I grind this tab off my frame? Reply #1 - 01/08/14 at 16:02:41 actually the parts fiche drawing doesn't really show the bit I'm talking about so I went out and did a shot with my phone:
Back to top	savage_frame_tab.jpg scrambler build: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1420917964/15 IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28387 Tucson Az Gender:	Re: can I grind this tab off my frame? Reply #2 - 01/08/14 at 16:06:21 Seems pretty useless,... I say, grind away... Although,.. you might want a second opinion... just so I don't get blamed if you screw something up......
Back to top	Ludicrous Speed !... ... ... IP Logged

strang Senior Member Offline Posts: 387 london Gender:	Re: can I grind this tab off my frame? Reply #3 - 01/08/14 at 16:30:20 yeh Serow I can't see WTF it's for either. Is it so they can hang the frame when factory painting?
Back to top	scrambler build: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1420917964/15 IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: can I grind this tab off my frame? Reply #4 - 01/08/14 at 19:11:32 That tab aligns the board I use to lift the bike.
Back to top	Versey's Place Tech Section Index IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: can I grind this tab off my frame? Reply #5 - 01/08/14 at 19:30:07 WAIT!! Theres a Tiny Leetle button under there.. That button gets set free from its steel cage a POWIE!! The whole thing blows up.. Ehh,, actually, no. If theres nothing you can see attached to it that you need, whack that thing off..
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

old_rider Serious Thumper Offline Backyard Bill Productions Posts: 3147 flordia panhandle Gender:	Re: can I grind this tab off my frame? Reply #6 - 01/10/14 at 05:52:21 Looks like the spring for the kickstand is attached to the inside of it??? Nevermind, went and looked at the wife's savage and I can see no reason for it to be there, looks like it was part of the foot peg/mount brace on that side of the frame, but nothing is attached to it.
Back to top	We are here to laugh at the odds and live our lives so well that Death will tremble to take us. IP Logged

v-pilot Senior Member Offline Loud bikes rule! Posts: 257 Rexford NY Gender:	Re: can I grind this tab off my frame? Reply #7 - 01/11/14 at 22:12:53 I ground that one off plus a lot more...2 lbs more. I'm building a Ryca
Back to top	Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x) Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650 Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250 IP Logged

mpescatori

Serious Thumper

Offline

Romanum Thumperium
Cavalco, yeaaah !!!

Posts: 3547
Rome, Italy
Gender: male

Re: can I grind this tab off my frame?
Reply #8 - 01/14/14 at 04:32:29

IMHO it is not part of the frame, it looks like it was welded on and painted over.

Is your bike 2nd hand or was it bought new ?

It could well be it was an add-on by a previous owner for whatever his requirement.

However, we only have a pic from one side of the tab.

Take a pic from the other side as well, enlarge, and see what the tab is for.

If "it's just there", then you have a case for getting rid of it.

If it "does stuff" then it has a reason to stay.

Wink

Back to top

Maurizio Pescatori, Esq.
Gentleman Rider

Mikuni BST40, K&N filter, Stage2 cam, Verslagen tensioner, Sportster muff, 120 proof moonshine, Pirelli MT 66 tourers... and a chain conversion too !

IP Logged

prechermike Serious Thumper Alliance Member Offline Kalashna Kitty, from Skat Posts: 1190 Ponzer, NC Gender:	Re: can I grind this tab off my frame? Reply #9 - 01/14/14 at 05:21:14 OK, Strang, we want to know what happened when you hit it with the grinder? Anything spectacular?
Back to top	2006, HD pipe, Tkat fork brace, elkhide handgrips, gel seat w/riser, silverblue, Ed L's forward controls, Wristwatch, biblethumper650@gmail.com IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17835
Camp Springs, Kentucky
Gender: male

Re: can I grind this tab off my frame?
Reply #10 - 01/14/14 at 06:18:12

Well I looked at my frame, and it has that angular piece as well. I can't really see a reason for it - but I don't have the stock peg on mine anymore. Was the tab supposed to somehow protect and deflect stuff away from the shift linkage or kick stand mount????? Could it have been used as a place to hold the frame at the factory while the bike was being assembled?

I don't see any reason you have to keep it.

Back to top

Someday I will be old......But not today!

IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: can I grind this tab off my frame?
Reply #11 - 01/15/14 at 07:55:44

Dave wrote on 01/14/14 at 06:18:12:

Well I looked at my frame, and it has that angular piece as well. I can't really see a reason for it - but I don't have the stock peg on mine anymore. Was the tab supposed to somehow protect and deflect stuff away from the shift linkage or kick stand mount????? Could it have been used as a place to hold the frame at the factory while the bike was being assembled?

I don't see any reason you have to keep it.

Could it have been used as a place to hold the frame at the factory while the bike was being assembled?

Thats what I was thinking. Anyone have a different idea, please do toss it out.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28387
Tucson Az
Gender: male

Re: can I grind this tab off my frame?
Reply #12 - 01/15/14 at 08:27:12

Could it be there as a lever aid when installing the sidestand spring?...

TIP... when removing the sidestand spring,.. fill the spring gaps with a bunch of coins or washers while the leg is at full extension... Then the spring comes off easy... Leave the coins in place for easy reinstall...
(this will save you many busted knuckles)... Wink

...
