Belt pully cover mesh mod
09/21/13 at 09:06:30

I know I've seen others do similar mods to their pully covers, I think it was Doody814's bike that made me think of doing this.  So I purchased some grill mesh off EBAY for just over $20 with shipping, it's 6"X36" as I plan on doing something similar to the belt guard too and needed the length.  Just a quick run through of what I did.

1-Basically just made a paper template of the inner area that could easily be cut without going too deep into the thicker reinforced areas then just used a sharpie to mark the front.

2-Grabbed the angle cutter and took out the straight lines.

3-Used the Dremmel on the corners, grind some of the reinforced areas and to smooth out the rough areas.

4-Used a file to smooth the edges and put a scratch on the face too!  LOL (skip the scratch if you plan on doing this yourself)

5-Cut the grill mesh with some hand snips and trimmed to fit nicely.

6-Drilled and riveted the mesh in place.

Took less then an hour and other then the scratch and over cut corner I custom applied it looks real pretty   Smiley





EBAY link for the mesh I purchased-  http://www.ebay.com/itm/190630630977?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m...


Sorry there's no pic of it on the bike, I'm kinda in the middle of tearing things apart and messing with the bike HAHAHAHAHAHA
Back to top



The Suzuki LS650, bringing Miles of Smiles everywhere!
  IP Logged
ToesNose
Serious Thumper
*****
Offline

Pardon me, do you
have Hot Sauce?

Posts: 1993
Mooresville, NC
Gender: male
Re: Belt pully cover mesh mod
Reply #1 - 09/22/13 at 16:40:31

Just in case somebody cares, here it is on the bike LOL

Back to top



The Suzuki LS650, bringing Miles of Smiles everywhere!
  IP Logged
Serowbot
YaBB Moderator
ModSquad
*****
Offline

OK.... so what's the
speed of dark?

Posts: 25226
Tucson Az
Gender: male
Re: Belt pully cover mesh mod
Reply #2 - 09/22/13 at 17:39:56

Nobody much here on weekends, Toes...
I post a lot of zero responses too...

It looks pretty good... It'll get seen a lot more in the next couple of days...

So lonely here on weekends... ...

Grin Grin Grin...
Back to top



Ludicrous Speed !... ... Huh...
  IP Logged
ToesNose
Serious Thumper
*****
Offline

Pardon me, do you
have Hot Sauce?

Posts: 1993
Mooresville, NC
Gender: male
Re: Belt pully cover mesh mod
Reply #3 - 09/22/13 at 18:00:32

Don't worry Serow my feelings don't get hurt that easy, just weird that there were 50 some odd views and no comment LoL
Back to top



The Suzuki LS650, bringing Miles of Smiles everywhere!
  IP Logged
Serowbot
YaBB Moderator
ModSquad
*****
Offline

OK.... so what's the
speed of dark?

Posts: 25226
Tucson Az
Gender: male
Re: Belt pully cover mesh mod
Reply #4 - 09/22/13 at 18:14:19

ToesNose wrote on 09/22/13 at 18:00:32:
Don't worry Serow my feelings don't get hurt that easy,

I know they don't... Two or three of those post counts was me as Moderator, just looking in to see who's here (We Mod's can see that),... if I'd been worried about yer' soft shell, I'd have posted then...
I do do that for some noobs occasionally, just to help them feel encouraged and welcome...
(Note you guys.. be nice to noobs)... Wink...

You got over 1,000 posts,Toes... I don't do nice, nice for ol' farts like you...
Grin Grin Grin...
Back to top



Ludicrous Speed !... ... Huh...
  IP Logged
ToesNose
Serious Thumper
*****
Offline

Pardon me, do you
have Hot Sauce?

Posts: 1993
Mooresville, NC
Gender: male
Re: Belt pully cover mesh mod
Reply #5 - 09/22/13 at 18:19:57

I feel honored that you wouldn't take it easy on me   Wink
Back to top



The Suzuki LS650, bringing Miles of Smiles everywhere!
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 48176
East Texas, 1/2 dallas/la.
Re: Belt pully cover mesh mod
Reply #6 - 09/22/13 at 20:23:20

Nice concept, Ill betya puckered when the cut-off walked past the corner,
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Serowbot
YaBB Moderator
ModSquad
*****
Offline

OK.... so what's the
speed of dark?

Posts: 25226
Tucson Az
Gender: male
Re: Belt pully cover mesh mod
Reply #7 - 09/22/13 at 23:47:39

ToesNose wrote on 09/22/13 at 18:19:57:
I feel honored that you wouldn't take it easy on me   Wink

Pffffffft!... Tongue...


...and,.. if Suzuki had made a head cover like yours,.. we wouldn't have 5.000 art objects decorating out shop walls...
...(I have about a dozen head covers in a box in my shop... when I get time, I'm going to make my mailbox into a chrome armadillo)... Huh...
Grin Grin Grin...
Back to top



Ludicrous Speed !... ... Huh...
  IP Logged
ToesNose
Serious Thumper
*****
Offline

Pardon me, do you
have Hot Sauce?

Posts: 1993
Mooresville, NC
Gender: male
Re: Belt pully cover mesh mod
Reply #8 - 09/23/13 at 04:37:06

@JOG- I didn't even realize till after, but there was definitely a sad face involved   Sad

@Serow-The cover is a chrome kitchen drawer pull I sanded to look like brushed aluminum, as for the armadillo let me know if you really are going to do it I'll mail you mine as well!!   Grin
Back to top



The Suzuki LS650, bringing Miles of Smiles everywhere!
  IP Logged
WD
Serious Thumper
2005 No Login
*****
Offline

Professional
"scooter
trash".

Posts: 5205
Rosemark TN
Gender: male
Re: Belt pully cover mesh mod
Reply #9 - 09/23/13 at 06:12:03

Much better. I think I threw the right head cover away, painted the left one black this last engine paint go round. Chrome was bubbling off anyway. Left covered, right bare, looks a bit more English than both sides being bare. At least to me.
Back to top



On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 15171
Camp Springs, Kentucky
Gender: male
Re: Belt pully cover mesh mod
Reply #10 - 09/23/13 at 06:17:18

Toesnose:

That looks great.

Now......you can do the rear brake to match!

Back to top



Someday I will be old......But not today!

  IP Logged
Pine
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1694
Mississippi, USA
Gender: male
Re: Belt pully cover mesh mod
Reply #11 - 09/23/13 at 06:56:02

Looks good.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 48176
East Texas, 1/2 dallas/la.
Re: Belt pully cover mesh mod
Reply #12 - 09/23/13 at 07:32:28

ToesNose wrote on 09/23/13 at 04:37:06:
@JOG- I didn't even realize till after, but there was definitely a sad face involved   Sad

@Serow-The cover is a chrome kitchen drawer pull I sanded to look like brushed aluminum, as for the armadillo let me know if you really are going to do it I'll mail you mine as well!!   Grin




Pain teaches.. IF its possible, working on the inside hides little boo boos. If its not possible to cut inside, clamping real steel stops at the end of lines will help ya out. Also, since ya wanna radius in corners & ya wanna see them be the same, starting out by setting up with a compass & dividers & whatever it takes to find center of a hole that would land IN each corner, then drilling holes for corners & connecting with a cut off will
NUmberA Protect your part from Over Run at a corner
& 2 Hook you up with a nicely radiused  opening.

If the divot bugs you you  mite try stirring up some JB weld & mixingit with some aluminum powder made by filing a bit ,,Just hafta do a trial run, see how it looks. Nick the edge of something & fill it, like Bondo, Orrrr,, call it done,I would,
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
babyhog
Serious Thumper
*****
Offline

Find a Cure for
Breast Cancer!
 NOW!!

Posts: 3802
WV
Gender: female
Re: Belt pully cover mesh mod
Reply #13 - 09/23/13 at 07:53:44

I really like the looks of it!  Nice touch.

Don't mean to be critical, but I'm thinking maybe the front line would have looked better if it were parallel with the joint....  bringing the bottom corner over toward the shifter pattern 1N2345.
Back to top



~ 2006 Black, Big Crank battery, HD Softail muffler, engine guard/o-ring pegs, Spitfite windshield, custom mounted Saddlemen bags, Mustang seat! ~ oh, and Hairdo by Helmet! ~
  IP Logged
ToesNose
Serious Thumper
*****
Offline

Pardon me, do you
have Hot Sauce?

Posts: 1993
Mooresville, NC
Gender: male
Re: Belt pully cover mesh mod
Reply #14 - 09/23/13 at 09:24:40

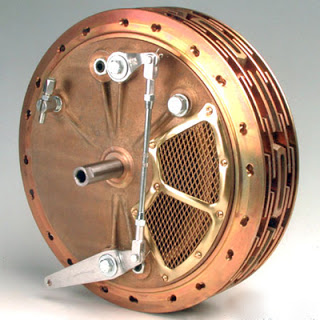

@Dave- I love the look of that rear drum! I was originally going to do an border/molding of metal around the edges on the outside like the drum mesh has and may still in the future, but the mesh I got was thin enough to just mount from behind wich is good enough for now   Grin
