help with oil change for a nOOb
08/24/13 at 13:35:57

Hi all! First off BIG THANKS to EVERYONE on this forum- it helped a lot in my decision to buy my Savage! Here's my problem- I am trying to change the oil but the drain plug just keeps turning without coming out. At first a bit of dirt came off but now it just keeps turning and turning. Any ideas?

My bike is a 2003 Suzuki Savage LS650, the wrench I am using is 14mm, turning counter clockwise. I've probably cranked it 70 or so times with no result, no change on the pressure. I admit I am learning as I go...determined to work on my bike myself. I've referenced the oil change guide Savage_Greg posted, thanks for creating that!

Thanks in advance

Back to top

the world is my oyster and the road is my throne...

IP Logged

sarahkhas YaBB Newbies Offline Posts: 26 colorado Gender:	Re: help with oil change for a nOOb Reply #1 - 08/24/13 at 13:37:04 I should add the bolt hasn't moved a bit outward- only round and round.
Back to top	the world is my oyster and the road is my throne... IP Logged

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: help with oil change for a nOOb Reply #2 - 08/24/13 at 14:27:24 Can you see the head of the drain plug bolt. A worst case scenario is that a previous owner has rounded the hex head of the drain plug. If you can't see the bolt head easily put a mirror under the bike. Are you using an open end or ring spanner?
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

babyhog Serious Thumper Offline Find a Cure for Breast Cancer! NOW!! Posts: 3802 WV Gender:	Re: help with oil change for a nOOb Reply #3 - 08/24/13 at 14:39:36 Also make sure you have the correct bolt. First time I changed mine, I unscrewed something and no oil came out. Oops wrong bolt!
Back to top	~ 2006 Black, Big Crank battery, HD Softail muffler, engine guard/o-ring pegs, Spitfite windshield, custom mounted Saddlemen bags, Mustang seat! ~ oh, and Hairdo by Helmet! ~ IP Logged

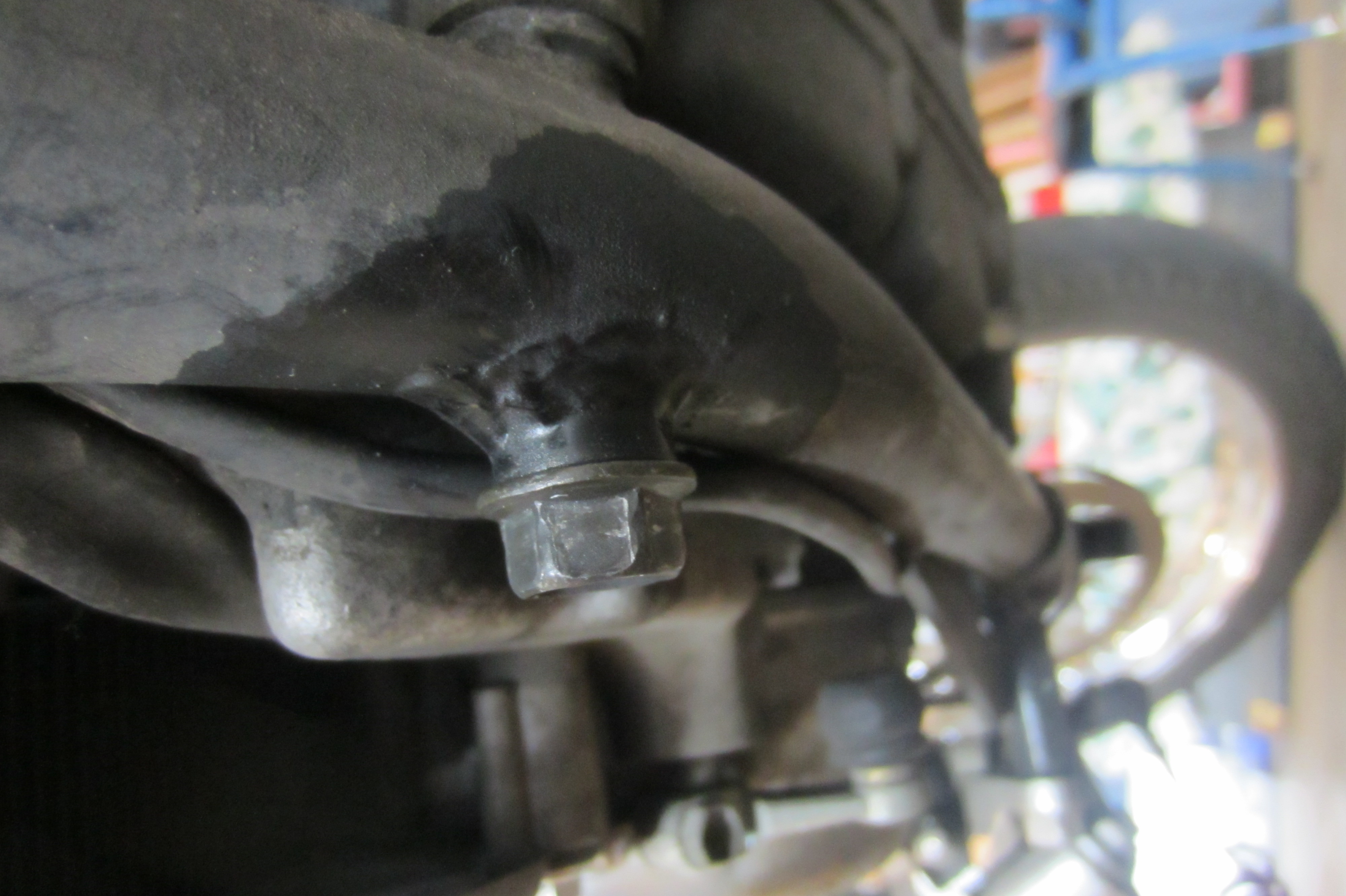

sarahkhas YaBB Newbies Offline Posts: 26 colorado Gender:	Re: help with oil change for a nOOb Reply #4 - 08/24/13 at 14:46:18 Here's what I see. I am using a socket wrench. I hope I have the correct bolt!
Back to top	IMG_2462.JPG the world is my oyster and the road is my throne... IP Logged

Toroso Full Member Offline SuzukiSavage.com Rocks! Posts: 120 Kingston, TN Gender:	Re: help with oil change for a nOOb Reply #5 - 08/24/13 at 14:49:35 sarahkhas wrote on 08/24/13 at 14:46:18: Here's what I see. I am using a socket wrench. I hope I have the correct bolt! No no no! It's inside of the frame tubes and goes directly into the engine case.
Back to top	1999 LS650 Dyna muffler, Raptor petcock, Verslavy IP Logged

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: help with oil change for a nOOb Reply #6 - 08/24/13 at 15:03:16 Sarakhas, best go to the tech section and click on table of contents with links, scroll to location of oil drain plug. there's two good photos.
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

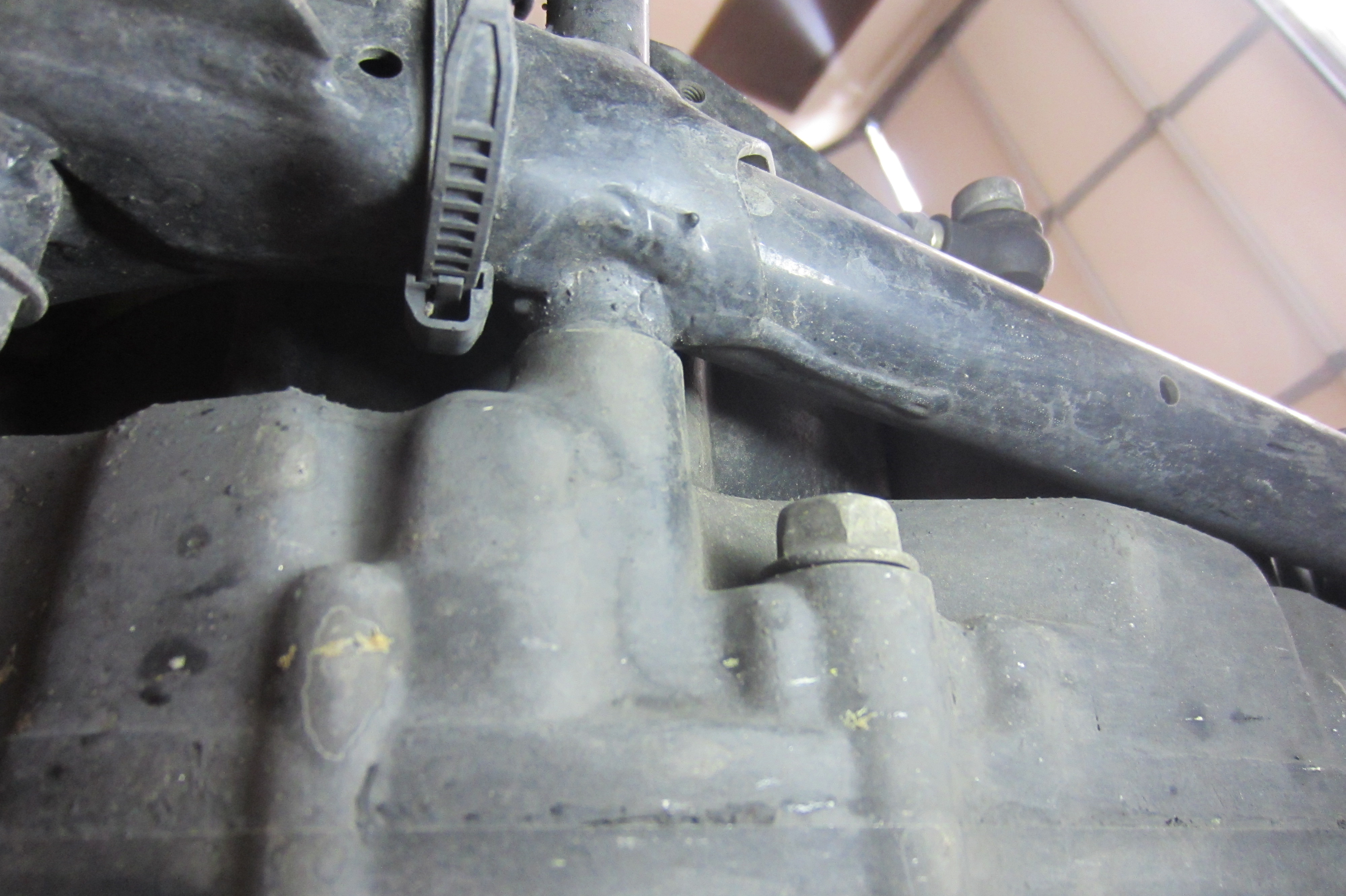

sarahkhas YaBB Newbies Offline Posts: 26 colorado Gender:	Re: help with oil change for a nOOb Reply #7 - 08/24/13 at 15:06:02 Aaag!! So happy I just showed the whole internet what a newbie I am. Is this it? Any idea what I was cranking on? THANKS SO MUCH!
Back to top	IMG_2464.JPG the world is my oyster and the road is my throne... IP Logged

sarahkhas YaBB Newbies Offline Posts: 26 colorado Gender:	Re: help with oil change for a nOOb Reply #8 - 08/24/13 at 15:11:07 Thank you jcstokes for the directions to the tech section, looks like i found the right bolt now. Thanks everyone for your help. Any idea what I was cranking on? A bit nervous about that now...
Back to top	the world is my oyster and the road is my throne... IP Logged

babyhog Serious Thumper Offline Find a Cure for Breast Cancer! NOW!! Posts: 3802 WV Gender:	Re: help with oil change for a nOOb Reply #9 - 08/24/13 at 15:41:46 sarahkhas wrote on 08/24/13 at 15:06:02: Aaag!! So happy I just showed the whole internet what a newbie I am. Is this it? Any idea what I was cranking on? THANKS SO MUCH! You aren't the first and certainly won't be the last! At least you were smart enough to come here to ask! Good luck!
Back to top	~ 2006 Black, Big Crank battery, HD Softail muffler, engine guard/o-ring pegs, Spitfite windshield, custom mounted Saddlemen bags, Mustang seat! ~ oh, and Hairdo by Helmet! ~ IP Logged

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: help with oil change for a nOOb Reply #10 - 08/24/13 at 15:43:10 Sarahkhas, you should be ok, but that drain plug has been slightly rounded use a ring spanner if possible.
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

sarahkhas YaBB Newbies Offline Posts: 26 colorado Gender:	Re: help with oil change for a nOOb Reply #11 - 08/24/13 at 15:51:30 Definitely will do on the ring spanner. THANKS EVERYONE SOOO MUCH!
Back to top	the world is my oyster and the road is my throne... IP Logged

deejaysham

Junior Member

Offline

Have fun, don't get
hurt

Posts: 81

Re: help with oil change for a nOOb
Reply #12 - 08/24/13 at 16:05:16

Just yesterday I tried to top up my oil for the first time. I overfilled it and wanted to drain some out and I couldn't find the bolt no matter how hard I looked. I ended up getting a siphon tube out and sticking it down the only hole I knew led to oil, which was the one I poured the oil IN.

So don't feel bad about showing the internet you're new. Some of us were so new that we had to avoid the bolt altogether and circumvent it!

Back to top

2009 Red/White S40, Pirelli MT66 Tires, Corbin Seat, Dyna Exhaust, Routy Forward Controls

IP Logged

Toroso Full Member Offline SuzukiSavage.com Rocks! Posts: 120 Kingston, TN Gender:	Re: help with oil change for a nOOb Reply #13 - 08/24/13 at 17:12:25 sarahkhas wrote on 08/24/13 at 15:06:02: Aaag!! So happy I just showed the whole internet what a newbie I am. Is this it? Any idea what I was cranking on? THANKS SO MUCH! Das it girl! I think you had an engine mount bolt before. After you loosened it, the other side just went round n round
Back to top	1999 LS650 Dyna muffler, Raptor petcock, Verslavy IP Logged

Charon

Serious Thumper

Offline

Posts: 1811
Harvard, NE
Gender: male

Re: help with oil change for a nOOb
Reply #14 - 08/24/13 at 17:20:00

You will need to find the nut on the other end of the bolt you turned, and tighten it. Not only is it an engine mount bolt, but it helps hold the engine cases together. If you don't tighten it, you will probably have an oil leak. You might need a helper, because you will probably need a wrench on both the nut and the bolt.
