Had the Savage dyno'd today (Read 444 times)
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Had the Savage dyno'd today
06/08/13 at 14:24:35
A local repair/speed shop was having a grand opening kinda thing and had the dyno plus print out for $30 plus a discount if you bought anything. I was thrilled to see that I didn't hurt my bike's performance with all the screwing around I did! I have the print out for HP, torque, and air-fuel ratio. They are supposed to be emailing me a copy later today. For now, I will post the scans.
Back to top
2002 Savage.
IP Logged
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Re: Had the Savage dyno'd today
Reply #1 -
06/08/13 at 14:52:58

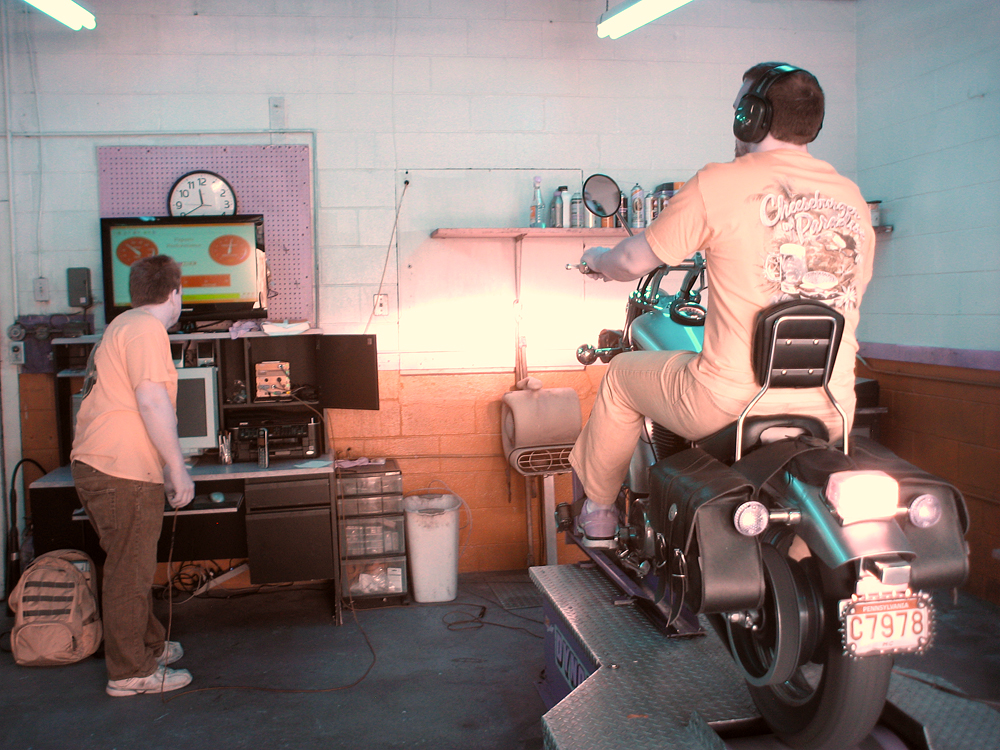

And my bike on the dyno.
Back to top
2002 Savage.
IP Logged
paulmarshall
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1268
Carterton,New Zealand
Gender:
Re: Had the Savage dyno'd today
Reply #2 -
06/08/13 at 16:20:20
Is your bike stock?
I cant read those charts. Can someone tell me in laymans terms what that chart says?
Back to top
IP Logged
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Re: Had the Savage dyno'd today
Reply #3 -
06/08/13 at 16:30:49

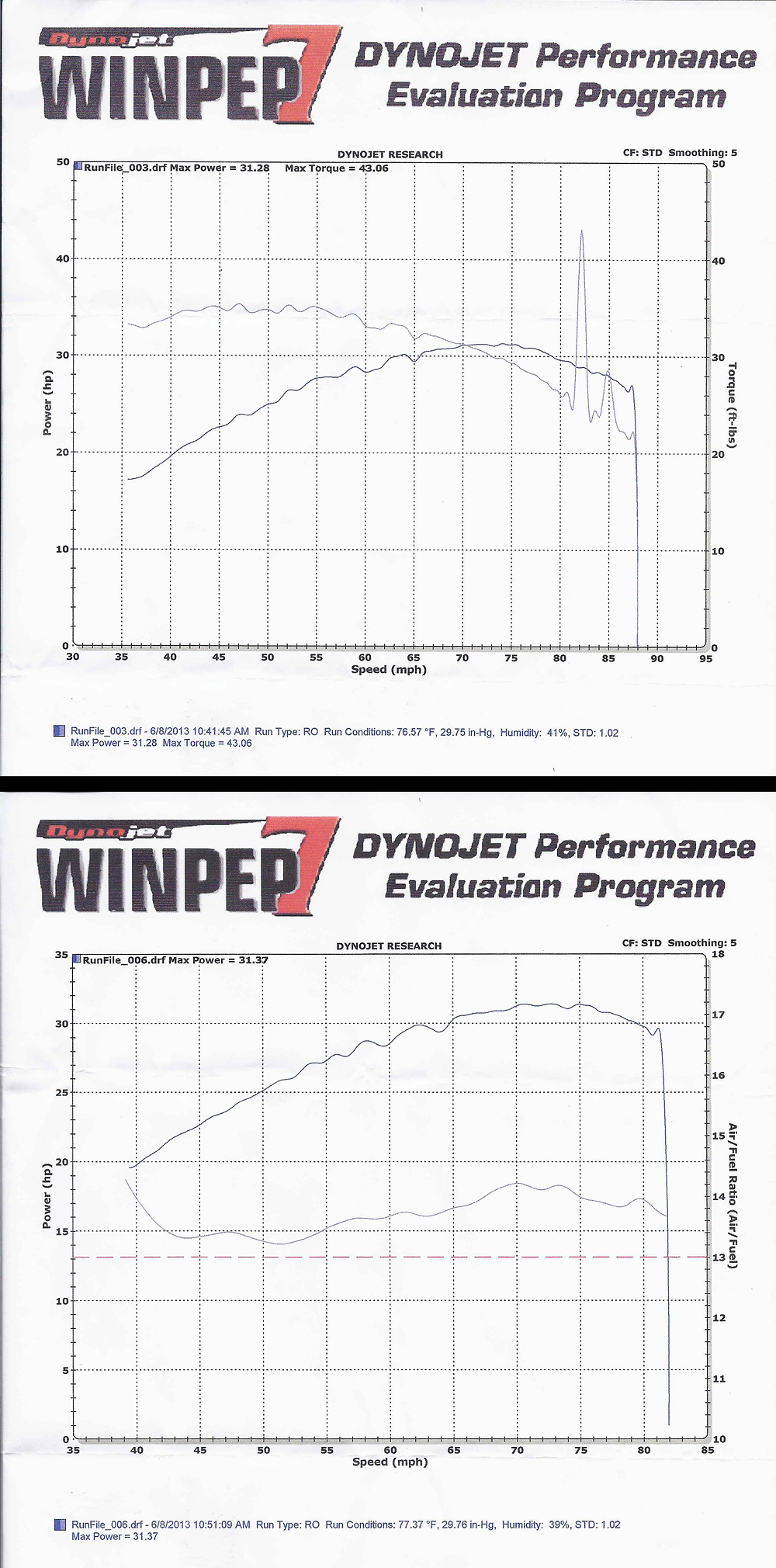

My bike has a K&N drop in air filter, a NOS HD fishtail muffler, and the carb was rejetted. The top chart shows a max of 31hp and 43 ft-lbs torque. Since the torque has a weird peak at an ungodly high RPM, I would say the real number is around 35 ft-lbs. The line that starts high and goes down is torque. The other is horsepower. The second chart is the air to fuel ratio. The dashed line is optimum. The middle line is the AFR and the top line is the hp overlay. My line is on the lean side of optimum. It isn't bad though. It leans out more at higher rpm and upper highway speeds. I don't know if I am going to worry about it or not.
Back to top
2002 Savage.
IP Logged
paulmarshall
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1268
Carterton,New Zealand
Gender:
Re: Had the Savage dyno'd today
Reply #4 -
06/08/13 at 16:42:36
Thats really interesting thanks.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: Had the Savage dyno'd today
Reply #5 -
06/08/13 at 17:33:55
You're between 14 and 13, optimum is 14.5
I'd say you're perfect.
How's the gas mileage?
Back to top
Versey's Place
Tech Section Index
IP Logged
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Re: Had the Savage dyno'd today
Reply #6 -
06/08/13 at 18:35:02
Depending on how hard I beat it, it is usually between 48 and 52mpg. Even the lesser beating is nothing like driving old lady style.
Back to top
2002 Savage.
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28625
Tucson Az
Gender:
Re: Had the Savage dyno'd today
Reply #7 -
06/08/13 at 18:36:17
verslagen1 wrote
on 06/08/13 at 17:33:55:
I'd say you're perfect.
..
just the way you are.
.. (
should be sung
)...
...
Good numbers, all 'round...
...
Back to top
Ludicrous Speed !... ...
...
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Had the Savage dyno'd today
Reply #8 -
06/08/13 at 19:53:49
Okasy you smart guys,, HP & Torque meet at 70 MPH,, what does that mean? He can run 70 & get good MPG?
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28625
Tucson Az
Gender:
Re: Had the Savage dyno'd today
Reply #9 -
06/08/13 at 21:17:56
Torque/HP always meet at 5250 rpm... that's how it's calculated...
I guess that is 70mph in top gear... (don't know why some Dyno's measure in Mph instead of Rpm's)...
It don't mean best mpg...
I've gotten my best mpg at 35 to 45mph... mostly in 4th gear... on my Mt rides... (in the 70 mpg range, averaging both the climb and descent)...
Back to top
Ludicrous Speed !... ...
...
IP Logged
LANCER
Serious Thumper
Alliance Member
Offline
Savage Beast
Performance Parts
Posts: 10659
Oklahoma
Gender:
Re: Had the Savage dyno'd today
Reply #10 -
06/09/13 at 05:34:10
Very nice numbers for sure.
What jets and needle setting and pilot screw turns are you running ?
Back to top
IP Logged
Charon
Serious Thumper
Offline
Posts: 1811
Harvard, NE
Gender:
Re: Had the Savage dyno'd today
Reply #11 -
06/09/13 at 06:22:34
It is easier to measure in MPH than to measure RPM, since the dyno "knows" how fast its drum is turning and doesn't have to care about gearing. Nor does there have to be any connection to the ignition system to measure MPH.
Air/Fuel ratios look pretty decent, except that they are only measured at wide-open throttle. That tells you the main jet is probably OK, along with air intake and plumbing. It tells you nothing about mid-range or pilot, since unless you make dyno runs at part-throttle those ranges are not checked.
Back to top
Eschew obfuscation.
IP Logged
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Re: Had the Savage dyno'd today
Reply #12 -
06/09/13 at 10:11:20
LANCER wrote
on 06/09/13 at 05:34:10:
Very nice numbers for sure.
What jets and needle setting and pilot screw turns are you running ?
I am not sure anymore. I believe I am running a 52.5 pilot and a 152.5 main jet. I didn't do the white spacer mod. Turns out on the screw? Your guess is as good as mine. I was fine tuning it last fall when the head stripped. I bought a new screw but never got it installed. I believe I started at 2.5 turns but don't know where I ended up.
Back to top
2002 Savage.
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28625
Tucson Az
Gender:
Re: Had the Savage dyno'd today
Reply #13 -
06/09/13 at 10:14:50
Grease monkeys in pink jumpsuits?... clearly not the Harley dealer...
...
...
Back to top
Ludicrous Speed !... ...
...
IP Logged
Jiggyfly
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 144
Re: Had the Savage dyno'd today
Reply #14 -
06/10/13 at 23:25:36
thirty one horsepower?!
Holy crap. I had a 138cc air-cooled single that made 19!
