Please help: Torque cylinderhead cover bolts (Read 184 times)

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28889
L.A. California
Gender: male

Re: Please help: Torque cylinderhead cover bolts
Reply #15 - 04/29/13 at 20:58:20

Digger wrote on 04/29/13 at 20:52:03:

RobSchneider wrote on 04/29/13 at 01:05:03:

....BTW Digger,
Is there any tension on that spring on your 2nd picture?
I don't have any tension on that spring, but guessing it will come when the engine is running?

Keep you guys posted!

Can't remember....

I DO remember, however, that the camshaft needs to be in a certain position when removing and replacing the head cover.

should be some tension on the decomp spring

head cover should be installed with crank at TDC.

Versey's Place
Tech Section Index

IP Logged

RobSchneider

Junior Member

Offline

what?

Posts: 72

Re: Please help: Torque cylinderhead cover bolts
Reply #16 - 04/29/13 at 22:59:15

Quote:

should be some tension on the decomp spring

head cover should be installed with crank at TDC.

I removed the steel wire from the spring, and know the position of the tensionscrews so I guess it will be alright then if I place it back exactly?

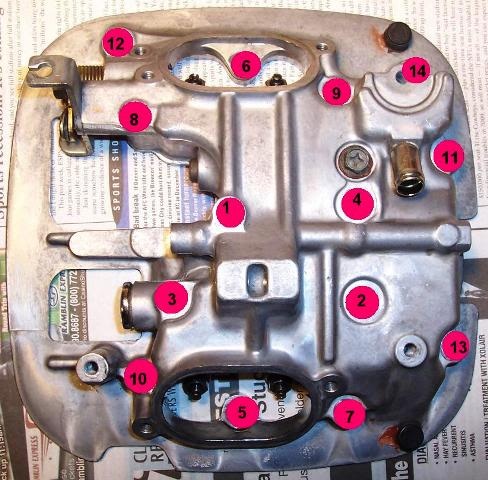

Does someone know the function of the screw above no.4 in this picture?
Its thread is broken inside, and I'm thinking to make a new thread and put a bigger screw in to seal it up... darn this sucks...


Follow me on twitter @BikerChicken

IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18101 Camp Springs, Kentucky Gender:	Re: Please help: Torque cylinderhead cover bolts Reply #17 - 04/30/13 at 04:52:47 The screw above No. 4 is the retainer screw for the shaft the rocker arm pivots on. You can take that shaft out to repair it....or just get a new one.
Back to top	Someday I will be old......But not today! IP Logged
