Re: LS400 vs 650
Reply #45 - 06/10/13 at 12:44:13

SteveBless wrote on 06/10/13 at 07:11:53:
I have the chance of buying a barrel and piston with crank and rod from a 650. Can anyone tell me if that is all I will need to convert a 400cc Savage to a 650cc. Not sure about carb jets, or the balance weight on the crank. The cylinder head I am not too sure about either. I think I have read on here they are the same. But the 400cc does not have a decompression lifter. So could I fit one cheap? (a manual type).

Yes except for one more thing. You will need the head assembly as the 400 head does not have the decompression controller/lifter.
Back to top


  IP Logged
SteveBless
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 27

Re: LS400 vs 650
Reply #46 - 06/10/13 at 15:17:51

Paul, is it possible to fit a manual lifter onto my Cylinder head?.
Back to top


  IP Logged
paulmarshall
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male
Re: LS400 vs 650
Reply #47 - 06/10/13 at 16:28:56

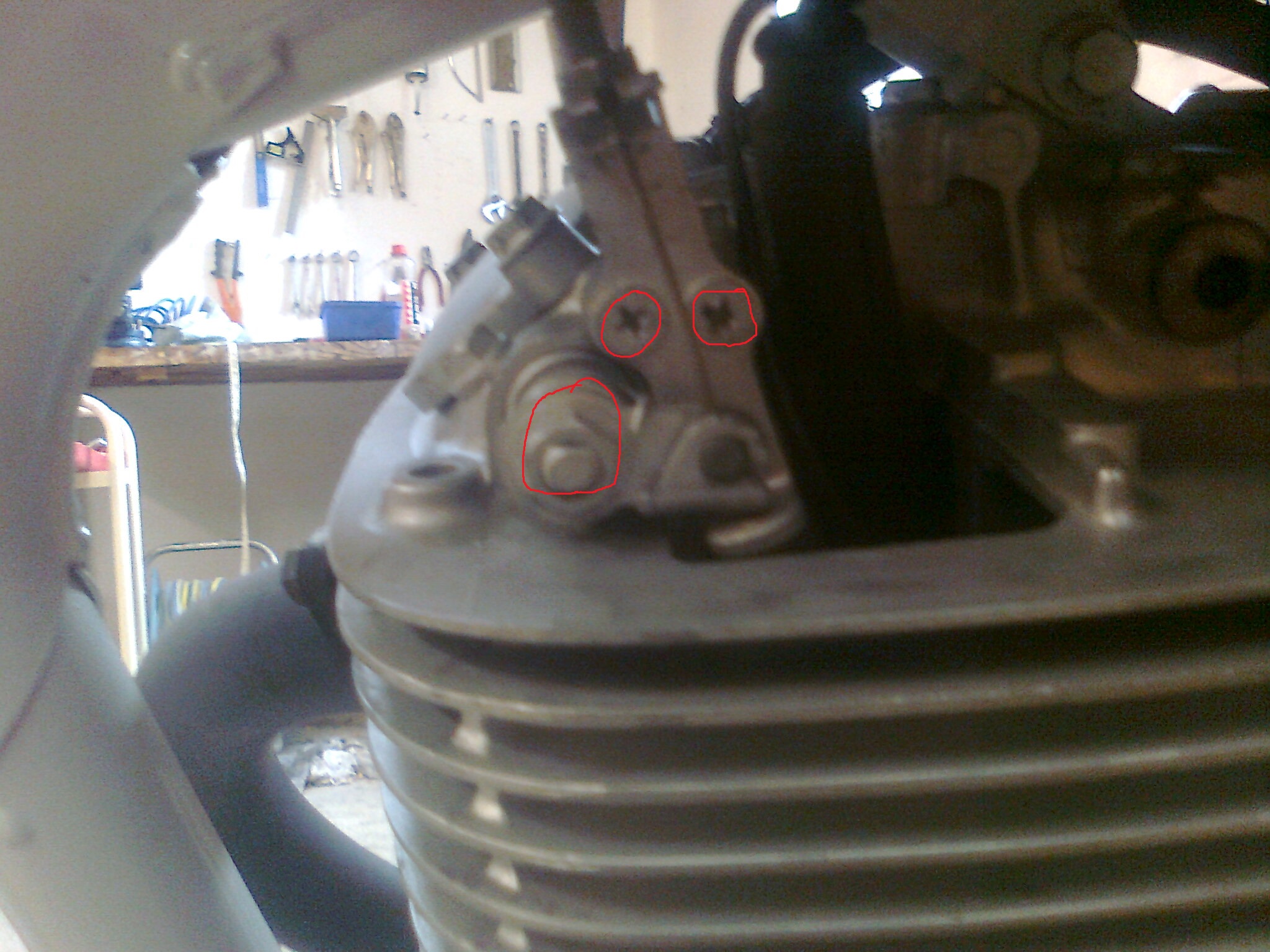

This is the 650. The HOLDER, DECOMP CABLE is held in with 2 crews as I have highlighted with red circles.And the SHAFT, DECOMP is highlighted with the single circle.
Back to top


  IP Logged
paulmarshall
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male
Re: LS400 vs 650
Reply #48 - 06/10/13 at 16:30:20

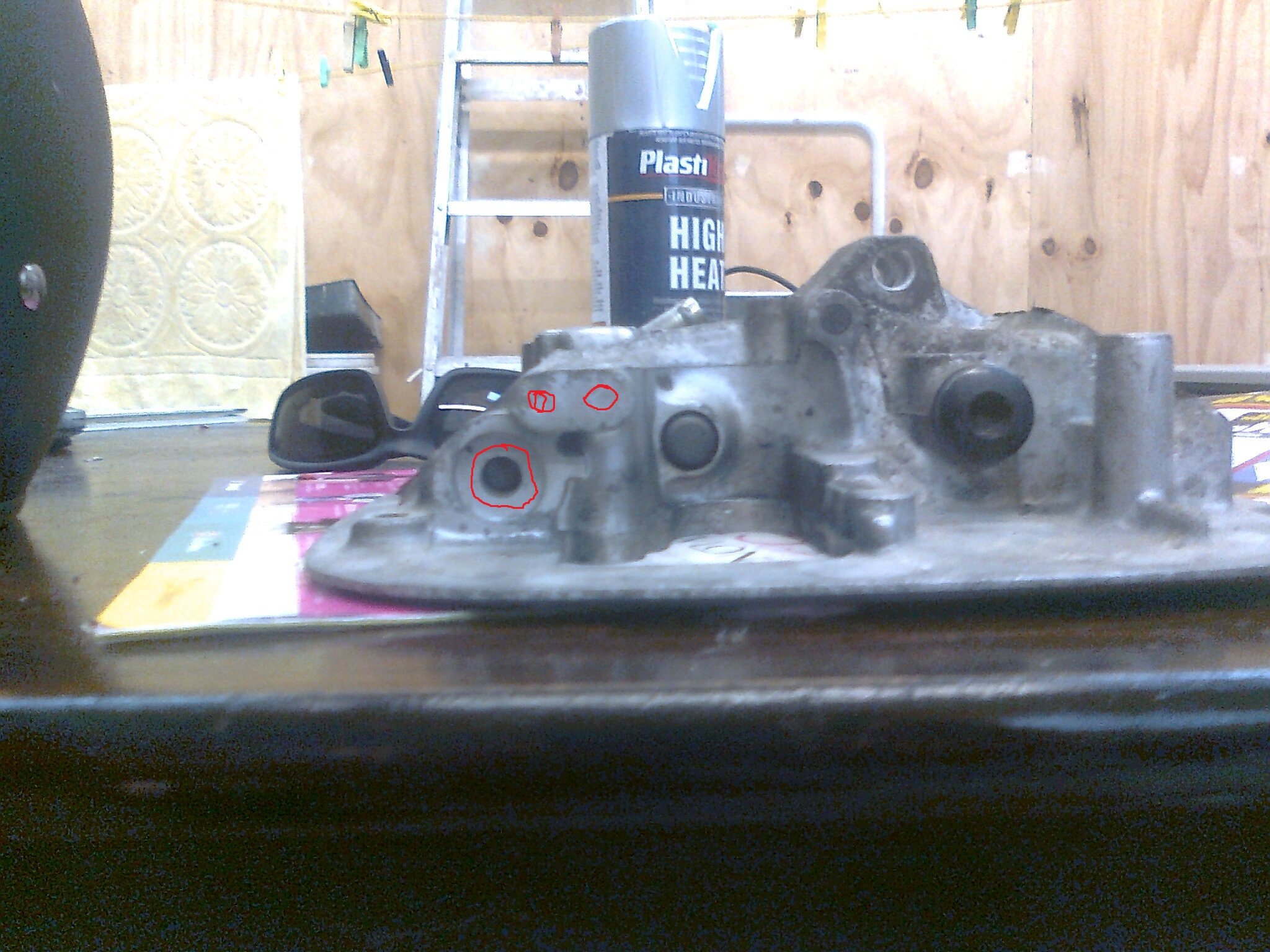

Now the 400 doesn't have the holes there to mount one as you can see in the pic.It looks like the sharft hole goes right through but it doesnt.
Back to top


  IP Logged
paulmarshall
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male
Re: LS400 vs 650
Reply #49 - 06/10/13 at 16:35:11

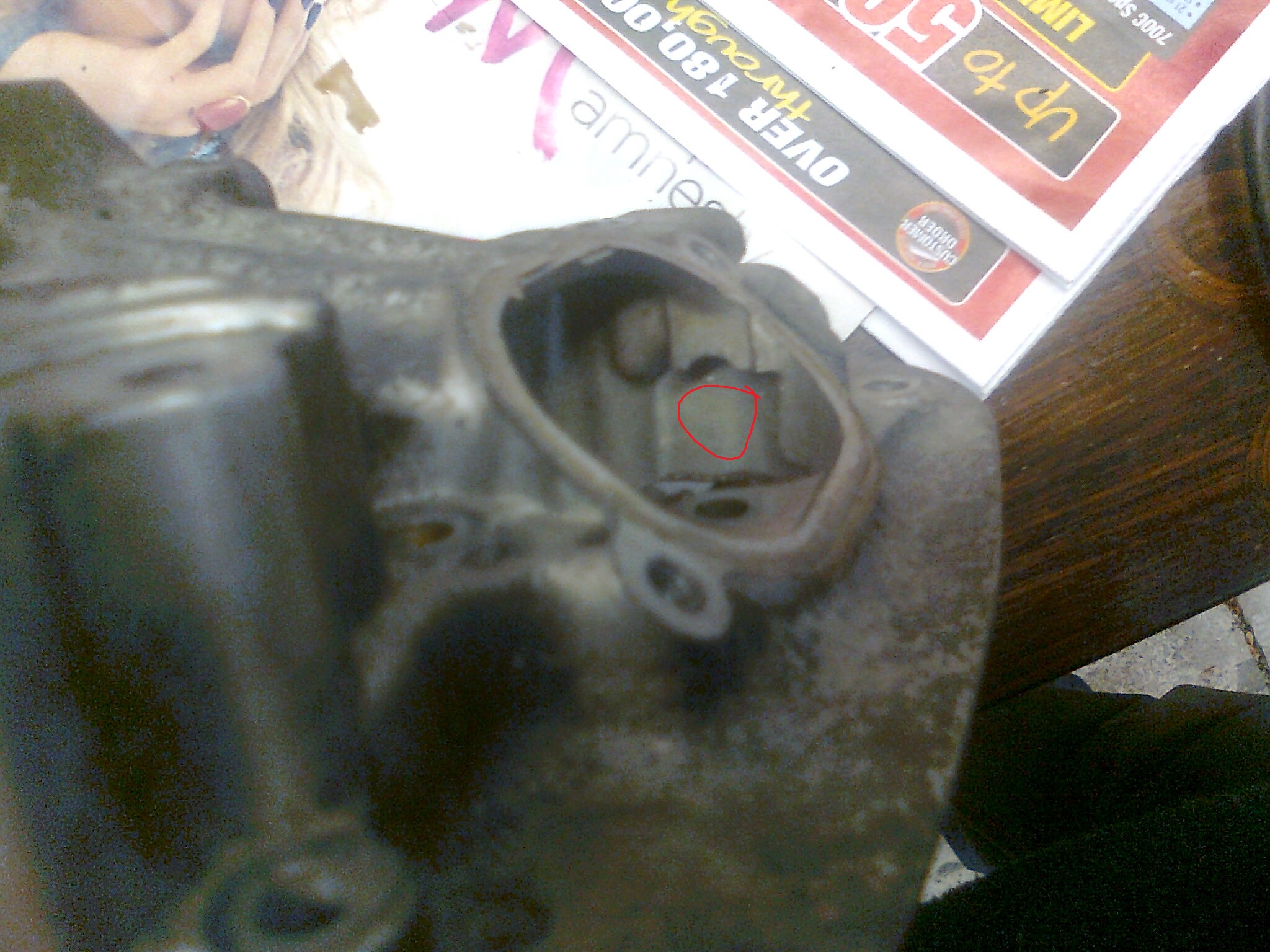

This is where the decomp shaft would come through if this was a 650 head.
Buy a 650 head and be done with it.
Maybe if your clever you could drill the holes and mount one. I have never done this. You could put the 400 on without the Decomp. But run the risk of burning out your starter.
My decomp is manual and more often than not I don't use it.
Back to top


  IP Logged
Cloudy
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 95
Gordonton, New Zealand
Gender: male
Re: LS400 vs 650
Reply #50 - 06/10/13 at 16:35:37

Does look possible to do though. Drill and tap holes for screws and bore for de-comp shaft
Back to top



Wife- 06 Suzuki S40
Me-05 Speedmaster, Short Slashcut TORs, Thunderbike A,I,R Kit, K&N Air Filter,Snorkel Removed, Dynojet Stage 1 Kit(126 main), NGK Iridium Plugs, Bar End Mirrors, Fenda Extenda
  IP Logged
paulmarshall
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male
Re: LS400 vs 650
Reply #51 - 06/10/13 at 16:38:52

Cloudy wrote on 06/10/13 at 16:35:37:
Does look possible to do though. Drill and tap holes for screws and bore for de-comp shaft

Yes it could be possible. I swapped complete engines and didn't have these problems.
Back to top


  IP Logged
SteveBless
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 27

Re: LS400 vs 650
Reply #52 - 06/11/13 at 00:21:12

Well thanks guys for all the info and pictures. This site is so good and lots of info on here. I will decide what to do in the next few days. I think if I did swap the barrel piston and crank I would leave the head for the time being as the bike is only for weekend runs. I will get a head later if I am to keep the bike. Again thanks all.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18092
Camp Springs, Kentucky
Gender: male
Re: LS400 vs 650
Reply #53 - 06/11/13 at 06:26:46

If you only ride in warm weather, if you do not install a Wiseco high compression piston, and if you awlays have a good battery.....you might be able to do without the compression release.  If you hit the starter button and the piston is on the compression stroke and it stops....you have to immediately let off the starter button, then put the bike in 2nd or 3rd gear and pull backwards to get the piston off the compression stroke.....then put it back in neutral and then hit the starter button.  It happens to me about 1 in every 200 starts, and I have the Wiseco piston that increases the compression from 8.5 :1 to 10:1.

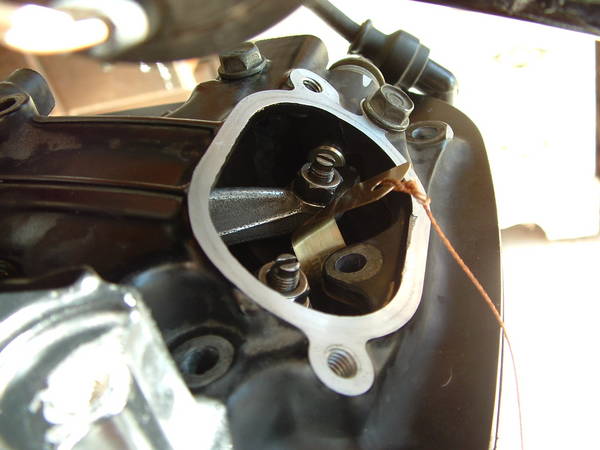

To modify your head not only do you have to drill the horizontal hole for the shaft - you have to drill and tap the hole for the bolt that holds the shaft in.  It is the bolt in this photo that is angled on the other side of the valve cover hole.
