Powder coat instead of paint
03/28/13 at 13:51:46

When the bike gets completed, it will be time for paint. I did some searching and think I want to powder coat my tank, fenders, and side pieces. Most stuff talks about the frame or small parts. Does anyone see an issue with powder coating instead of painting? I am thinking it should hold up better than paint as far as chips and strapping stuff to the rear fender.

Oh, BTW, it won't be a DYI thing. I will pay either a body shop or my local powder coat company.

Back to top

2002 Savage.

IP Logged

rfw2003

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1108
Yantis, TX

Re: Powder coat instead of paint
Reply #1 - 03/28/13 at 14:52:46

powder coating if done right is much more durable then paint for sure. The only issue is you don't have as many color choices as you do with paint. They are getting alot better with more colors but still it's limited. Also for powder coating the parts they have to be able to withstand the heat of the process so any plastic parts are a no go for powder coating.

I for one say go for it on your sheet metal parts, meaning the tank and fenders, as I have thought about doing so myself instead of painting.

R.F.

Back to top

1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler

IP Logged

00savage YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 39 Franklin, PA Gender:	Re: Powder coat instead of paint Reply #2 - 03/28/13 at 16:07:21 I agree that powder coating would be more durable than paint. I was going to do that to my tins. There's only a handfull of shops in my area that do powder coating. Because there isn't alot of competition their prices were too rich for me. I say if you can afford it, go for it. It makes a really nice finish on a scoot...
Back to top	IP Logged

engineer Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 872 Gender:	Re: Powder coat instead of paint Reply #3 - 03/28/13 at 16:50:56 Someone please correct me if I am wrong about this because I have been out of the industry for many years and things change but powder coat doesn't have all the finishing options that paint does. If you want a really incredible paint job with lots of depth, metal flake, what have you, powder coat can't do it.
Back to top	2005 S40, Intruder shocks, Dyna, 52.5/150, 3 washers, 2 turns, modified seat, Raptor IP Logged

WD Serious Thumper 2005 No Login Offline Professional "scooter trash". Posts: 5207 Rosemark TN Gender:	Re: Powder coat instead of paint Reply #4 - 03/28/13 at 17:08:40 It can now, and you can get it blended to match just about any paint shade you want. There's a guy on another forum I frequent who does multi shade powder jobs, cleaner than taped off enamels or lacquers. Talk to a bike specific powdercoater. If the shop near you does mainly industrial jobs, find someone else.
Back to top	On 2 wheels since 7/87 Black and Chrome 2003 1950s style custom IP Logged

Super Thumper Senior Member Offline 2001 LS650 With 97mm Big Bore Kit, Stage III Cam. Posts: 469 Windsor, Vermont Gender:	Re: Powder coat instead of paint Reply #5 - 03/30/13 at 18:10:11 There is a powder coating shop near me here in Vermont...had them powder a BMW frame for a restoration I did a couple of years ago...cost $495.00 but it was what the customer wanted.
Back to top	Live To Ride...Ride To Live IP Logged

Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Re: Powder coat instead of paint Reply #6 - 03/31/13 at 04:31:38 I haven't got a quote yet. I am waiting until I catch up on some bills. I may poop my pants when I get hit with the price and it just won't matter.
Back to top	2002 Savage. IP Logged

cafecarl

Junior Member

Offline

I love old
motorcycles

Posts: 58
Maine
Gender: male

Re: Powder coat instead of paint
Reply #7 - 04/01/13 at 07:25:45

I talked to a local powder coater about doing mine, he told me that items like frames and small irregular pieces come out really nice and are much more durable than regular paint, however, he didn't recommend doing the tank, fender or sidecovers. He claimed the parts with larger smooth surfaces are difficult to get a finish that come even close to paint and clear coat. He also wanted $300 to do the frame and $150 for the swingarm. Too rich for me. Also as was mentioned before, paint has more options fix dings and scratches if it does get damaged. Good luck. Cool

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18097
Camp Springs, Kentucky
Gender: male

Re: Powder coat instead of paint
Reply #8 - 04/01/13 at 07:41:49

I have used Powder coating for some things and it works well - I have never done a tank or other large surface. I did have an entire 18' long trailer powder coated when the local company had an oven that big.

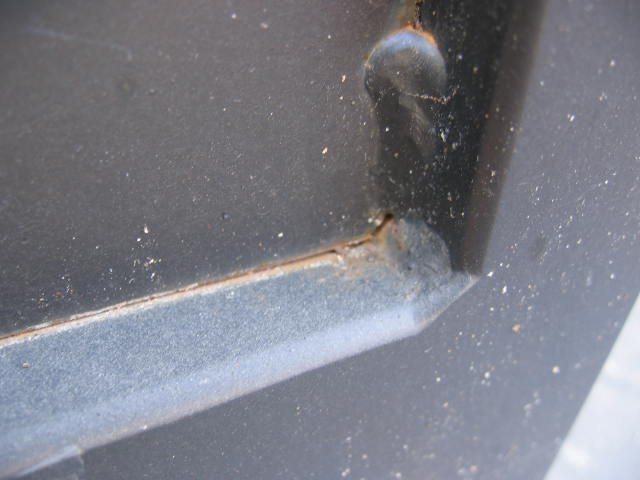

The one problem I have with powder coating is that it does not fill seams or gaps well. When you buy factory trailer wheels that have been powdercoated they soon rust where the inner piece and the outer piece are mated - the powder does not fill the seam. I even had this problem on steel wheels that the local fellow powder coated. This has also been a problem on some pipe supprt brackets that we had manufactured and powder coated.

Back to top


Someday I will be old......But not today!

IP Logged

rfw2003

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1108
Yantis, TX

Re: Powder coat instead of paint
Reply #9 - 04/01/13 at 08:47:14

Dave wrote on 04/01/13 at 07:41:49:

I have used Powder coating for some things and it works well - I have never done a tank or other large surface. I did have an entire 18' long trailer powder coated when the local company had an oven that big.

The one problem I have with powder coating is that it does not fill seams or gaps well. When you buy factory trailer wheels that have been powdercoated they soon rust where the inner piece and the outer piece are mated - the powder does not fill the seam. I even had this problem on steel wheels that the local fellow powder coated. This has also been a problem on some pipe supprt brackets that we had manufactured and powder coated.

That problem is solved with some pre-prep work. Very few power coaters offer this service so it's upto the customer to do this themselves.

On those rims that came as spot welded in just key area's I would have done full welds all the way around and then finish ground them to make it look good before getting them powder coated.

R.F.

Back to top

1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler

IP Logged

scubachef

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 140

Re: Powder coat instead of paint
Reply #10 - 04/01/13 at 09:48:27

The powder wont stick to filler....I just got to thinking that there is a right way to use filler and most painters I know always skim the surface before primer to make sure everything is laser straight. Since the first step of powder coating is usually blasting won't there be a possibility of minor surface waves/imperfections that need the skim coat. I would think especially with the darker colors you would maybe need some filler work to make sure everything is perfect....

Back to top

IP Logged

rfw2003 Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1108 Yantis, TX	Re: Powder coat instead of paint Reply #11 - 04/01/13 at 09:50:54 that's why I said weld up the seams then grind/sand to get it looking good
Back to top	1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler IP Logged

WD Serious Thumper 2005 No Login Offline Professional "scooter trash". Posts: 5207 Rosemark TN Gender:	Re: Powder coat instead of paint Reply #12 - 04/01/13 at 09:53:23 Simple problem, simple solution. Body solder or brass. Eastwood should still carry/sell body solder and the tools and flux to work it.
Back to top	On 2 wheels since 7/87 Black and Chrome 2003 1950s style custom IP Logged

rfw2003 Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1108 Yantis, TX	Re: Powder coat instead of paint Reply #13 - 04/01/13 at 09:59:41 WD wrote on 04/01/13 at 09:53:23: Simple problem, simple solution. Body solder or brass. Eastwood should still carry/sell body solder and the tools and flux to work it. that works to. Plus it's alot easier to work with then hard welds. R.F.
Back to top	1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler IP Logged

scubachef

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 140

Re: Powder coat instead of paint
Reply #14 - 04/01/13 at 19:32:06

I can't say that wont work.... But my trepidation comes from an experience where I had a wire shelving unit fall apart in the oven when the shop baked it. The powdercoater said after he saw what happened he inspected the part he realized it wasn't welded together but soldered and that is why it fell apart.

Again I don't claim to have any great expertise on this, just throwing out something that happened to me.

Back to top

IP Logged
