Raptor Petcock Issue (Read 1091 times)
nrausch
YaBB Newbies
*
Offline

2003 Savage

Posts: 27
Brooklyn, NY
Gender: male
Raptor Petcock Issue
03/13/13 at 09:07:19

Greetings Gents!

I ordered a raptor petcock from ebay, drained the tank, took the old petcock off, and as I was putting in the new one, realized that the small connector nozzle that connects to the gas line is too small to fit the gas hose.

Is this common, is there an adaptor, does that nozzle screw off and is it replaceable with a larger nozzle?

Or is this just the wrong petcock? Otherwise the screws into the tank and the seal are all spot on...

This is what I received:
U:US:3160&vxp=mtr" target="_blank">http://www.ebay.com/itm/271104963437?item=271104963437&viewitem=&sspagename=ADME:LShockedU:US:3160&vxp=mtr

Thanks for any wisdom!
Back to top



2003 LS650 Savage.
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Raptor Petcock Issue
Reply #1 - 03/13/13 at 09:24:34

Id get a new piece O gas line thatll shove on the carb AND on the new petcock & call it good.

But, when you say the petcock nozzle is too small,, how Much too small? Would a hose clamp get it? Its kinda hard to get a really good, ROUND crimp on stuff that small.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
nrausch
YaBB Newbies
*
Offline

2003 Savage

Posts: 27
Brooklyn, NY
Gender: male
Re: Raptor Petcock Issue
Reply #2 - 03/13/13 at 09:34:22

It is so small that it fits inside the old hose without touching any of the sides.

I was worried about getting some new hose that fits the petcock, but then would be too small to fit onto the carb.

I don't think a hose clamp would be able to squeeze it enough to make a nice tight fit. But I guess that's worth a shot if there's no better solution.

Thanks!
Back to top



2003 LS650 Savage.
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Raptor Petcock Issue
Reply #3 - 03/13/13 at 09:38:38

Naaah, Im with you,, If its so loose it doesnt even touch, a clamp is gonna bunch it up, like a belt on pants that are Just too big,,I cant imagine such a tiny fuel outlet on the petcock,, sounds DUMB,, but,, if thats what it is, thats what it is. Id go to the parts store & take the gas line with you, & an accurate measurement of the petcock nozzle or the petcock itself. Someone can help you get something put together.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Serowbot
YaBB Moderator
ModSquad
*****
Offline

OK.... so what's the
speed of dark?

Posts: 28674
Tucson Az
Gender: male
Re: Raptor Petcock Issue
Reply #4 - 03/13/13 at 09:40:45

It says it's the right one,.. but, it may be a from a Raptor 350, or 250...
They are  a smaller outlet,.. and the one I have is on a shorter stem that required filing a small divot in the tank seam to clear...
I did  make it work,... but, swapped to a correct size later...
Back to top



Ludicrous Speed !... ... Huh...
  IP Logged
jcstokes
Serious Thumper
*****
Offline

SuzukiSavage.com is
very useful

Posts: 2119
Mauku New Zealand
Gender: male
Re: Raptor Petcock Issue
Reply #5 - 03/13/13 at 11:29:18

Had a look at your EBAY thing and note that your petcook is from an ATV, it was also a $13 one, I saw a $29 one which was also for a Raptor 660 and the outlet looked larger.
Back to top



Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad
  IP Logged
paulmarshall
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male
Re: Raptor Petcock Issue
Reply #6 - 03/13/13 at 12:43:33

I agree with jcstokes, I did the same thing once.  Angry Because I hadnt used it they refunded me. Smiley Maybe you can swap it.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Raptor Petcock Issue
Reply #7 - 03/13/13 at 14:07:13

What he said,,
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
rockah
YaBB Newbies
*
Offline

SuzukiSavage.com
Rockahs!

Posts: 2
Sweden
Gender: male
Re: Raptor Petcock Issue
Reply #8 - 03/13/13 at 14:09:22

the description looks the same to me.
the second picture matches the part number.
found the part number in this guide: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1251932429/1

1 (wrong): http://www.ebay.com/itm/New-Yamaha-YFM660-Raptor-ATV-Gas-Fuel-Tank-Switch-Val...
2 (ALSO WRONG!!): http://www.ebay.com/itm/Fuel-Gas-Petcock-Valve-Switch-Pump-2005-2004-2003-200...

Part number: 5LP-24500-01-00

Back to top

« Last Edit: 03/27/13 at 11:25:54 by rockah »
  IP Logged
nrausch
YaBB Newbies
*
Offline

2003 Savage

Posts: 27
Brooklyn, NY
Gender: male
Re: Raptor Petcock Issue
Reply #9 - 03/13/13 at 14:49:04

Thanks guys!

I ordered the correct one, and am sending the other back.

Glad to know this rather than trying to rig up some kind of custom hose.

Thanks again!
Back to top



2003 LS650 Savage.
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18101
Camp Springs, Kentucky
Gender: male
Re: Raptor Petcock Issue
Reply #10 - 03/13/13 at 16:10:52

They even make a similar looking petcock for a 50 and 80cc bikes with the small tube.  (Don't ask me how I know).

Maybe they copied the wrong petcock and only thought it was for a 660.
Back to top



Someday I will be old......But not today!

  IP Logged
Super Thumper
Senior Member
****
Offline

2001 LS650 With 97mm
Big Bore Kit, Stage
III Cam.

Posts: 469
Windsor, Vermont
Gender: male
Re: Raptor Petcock Issue
Reply #11 - 03/14/13 at 16:34:05

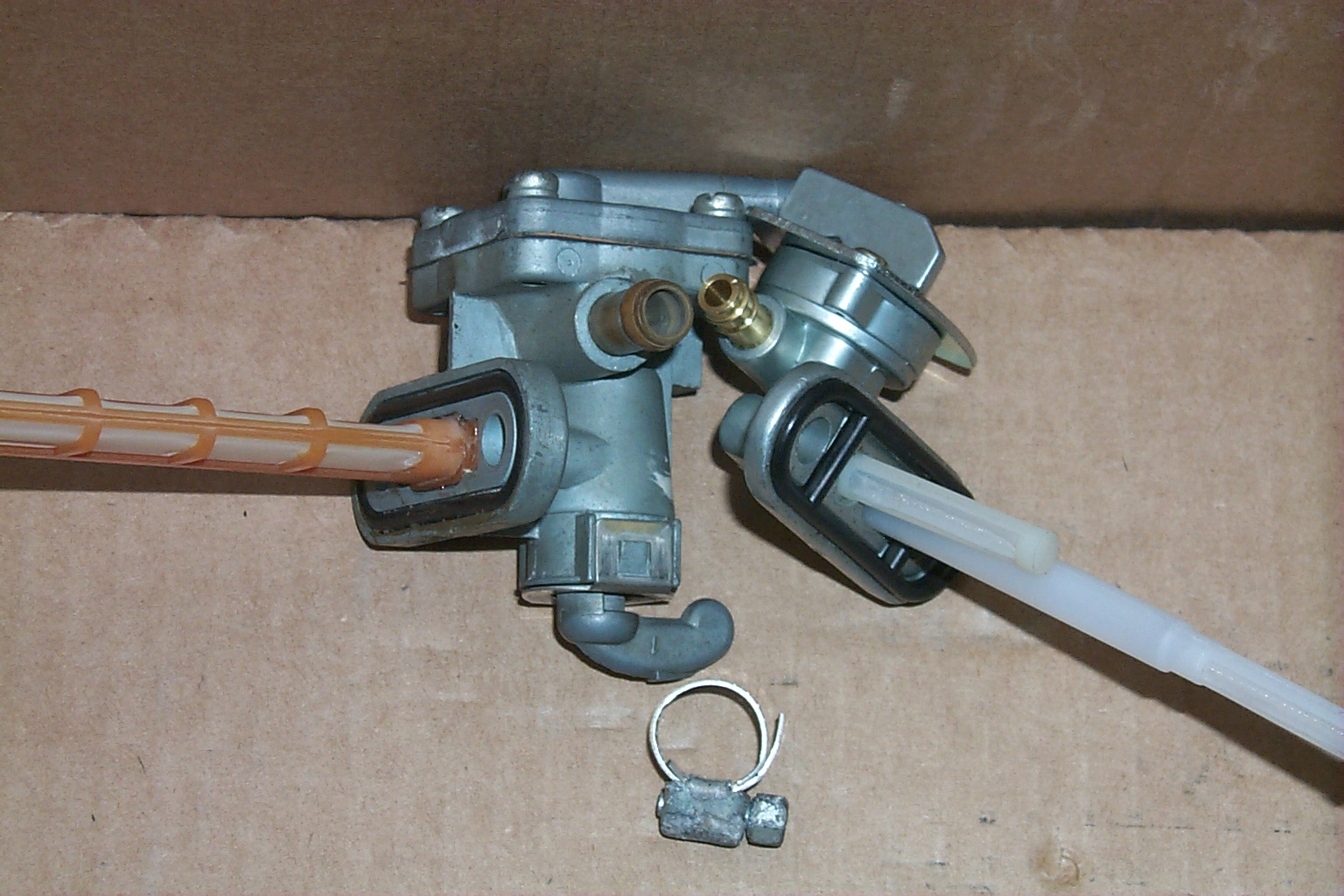

The correct rRaptor petcock is for 660 Raptor. The ones for a smaller engine size may not flow enough fue for your 650 Savagel. The pic shows the OEM petcock next to the 660 Raptor petcock so you can see the difference in the fuel outlet size. The Raptor 660 petcock requires a 1/4" fuel line....the OEM petcock uses the OEM 5/16" fuel hose. The fit on the Raptor petcock is a little loose so use a 1/2" worm clamp as shown in the pic. I sell these petcocks and include a worm clamp AND a vacuum cap to plug the vacuum port on the OEM carb with each petcock. I sell these on my website www.windsorcycles.com.
Back to top



Live To Ride...Ride To Live
WWW   IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18101
Camp Springs, Kentucky
Gender: male
Re: Raptor Petcock Issue
Reply #12 - 03/14/13 at 18:24:12

Super Thumper:

What you have is not a factory Yamaha Raptor Petcock.  The Yamaha petcock does have a 5/16" nipple and it fits the original fuel line with the original spring clamp.  It also has a brass extension tube.

You must have gotten one of the chinese knock offs.......

The factory petcock is part number 5LP-24500-01.  The nipple measures 0.316" on the tube and 0.359" at the flared portion.  A 5/16" fuel line fits very snug on the nipple.

Here is a thread I did on the factory Raptor petcock.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1340021926

And here are photos of of the Yamaha Raptor petcock.


Back to top



Someday I will be old......But not today!

  IP Logged
mikey2004
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 57
Sarasota Florida
Gender: male
Re: Raptor Petcock Issue
Reply #13 - 03/14/13 at 18:42:02

I just installed the raptor 2 weeks ago. had the same problem. I just used a worm gear connector and tightened it as much as I could until I got a good seal.
Back to top


  IP Logged
Super Thumper
Senior Member
****
Offline

2001 LS650 With 97mm
Big Bore Kit, Stage
III Cam.

Posts: 469
Windsor, Vermont
Gender: male
Re: Raptor Petcock Issue
Reply #14 - 03/14/13 at 18:50:07

I just got these from a supplier a few days ago so I will check this out tomorrow when I get to my shop. I do have a genuine Suzuki Raptor 660 petcock to compare and will report the results this weekend along with pics. If it rurns pouyt the fuel outlets are indeed smaller on my aftermarket Raptor 660 petcocks they are going back! Thanks for the info.
Back to top



Live To Ride...Ride To Live
WWW   IP Logged
