Temperature gage
02/17/13 at 14:57:04

I'm trying one of these as a oil temp gage...

The cable is a little short as I've attached it to the forward facing oil port.
The 14mm size fits tightly on the plug.

Even on a cold morning it's reading 197°F and 209°F on the way home.

This mornings run got it up to 220°F mainly cause there was no traffic and I ran 75/85 all the way.
I was wondering if it got that high cause the oil was on the lower mark so I ran 70 back home and it was more or less normal 200°F

Once I lengthen the cable, I'll paint it black and stick it on the backside of the flyshield for an indiscreet gage. Got a 12mm ordered for the head too, but might have to grind a little relief to one side of the spot face for the sparkplug to give the ear for the cable a little room.

Back to top

« Last Edit: 10/07/13 at 12:03:36 by verslagen1 »

Versey's Place
Tech Section Index

IP Logged

Digger Serious Thumper 2005 No Login Offline Ya gotta be tough to ride singles! Posts: 1604 Colorado Springs, CO Gender:	Re: Temperature gage Reply #1 - 02/17/13 at 19:23:49 Ver, Interesting.....lookin' forward to your data!
Back to top	Digger 2001, Metallic Glacial Blue, Raptor Petcock, Verslavy (first hole) (otherwise, mechanically, the bike is stock), 13,xxx miles I don't own a cage. www.astronautbiker.com IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17893
Camp Springs, Kentucky
Gender: male

Re: Temperature gage
Reply #2 - 02/18/13 at 05:06:32

Verslagen1:

I am about to order a Vipertech and it has a temperature sensor for the spark plug.....but that seems like an inconvenient place for the sensor to be from now on. I was thinking about putting it under one of the cylinder stud bolts on the right side. They hvae a big copper washer under the nut - and I could just put the senser under one of those washers.

My other option is to just replace the cylinder head sensor with one of their oil sensors.

Back to top

Someday I will be old......But not today!

IP Logged

Gyrobob Serious Thumper Offline Posers ain't motorcyclists Posts: 2571 Newnan, GA Gender:	Re: Temperature gage Reply #3 - 02/18/13 at 06:14:24 You might try sticking the sensor end in some lightly boiling water to sort of calibrate it. I have not had very good luck with the accuracy of these kinds of things, even with stuff that was supposed to be aircraft quality.
Back to top	If you think there's good in everyone, you haven't met everyone. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28841 L.A. California Gender:	Re: Temperature gage Reply #4 - 02/18/13 at 07:26:31 yep, I could do that, but how would I adjust? I am fairly pleased that it shows ambient temp correctly.
Back to top	Versey's Place Tech Section Index IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17893
Camp Springs, Kentucky
Gender: male

Re: Temperature gage
Reply #5 - 02/18/13 at 08:22:57

verslagen1 wrote on 02/18/13 at 07:26:31:

yep, I could do that, but how would I adjust?

I am fairly pleased that it shows ambient temp correctly.

I don't think you can make any adjustment - But it would show that the gauge is accurate at 212 degrees, which is near the range at which it will be operating.

I suppose like most gauges it will give you a sense of security to see that things are....."normal" once you get used to the range it operates in. And when things get outside of "normal".....then you can react accordinaly.
(In the movies....the first thing they do is take their index finger and "tap" repeatedly on the gauge). Shocked

Back to top

Someday I will be old......But not today!

IP Logged

Gyrobob Serious Thumper Offline Posers ain't motorcyclists Posts: 2571 Newnan, GA Gender:	Re: Temperature gage Reply #6 - 02/18/13 at 10:44:00 "I don't think you can make any adjustment - But it would show that the gauge is accurate at 212 degrees, which is near the range at which it will be operating." that's what I was going to say,...
Back to top	If you think there's good in everyone, you haven't met everyone. IP Logged

paulmarshall

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male

Re: Temperature gage
Reply #7 - 02/18/13 at 11:04:31

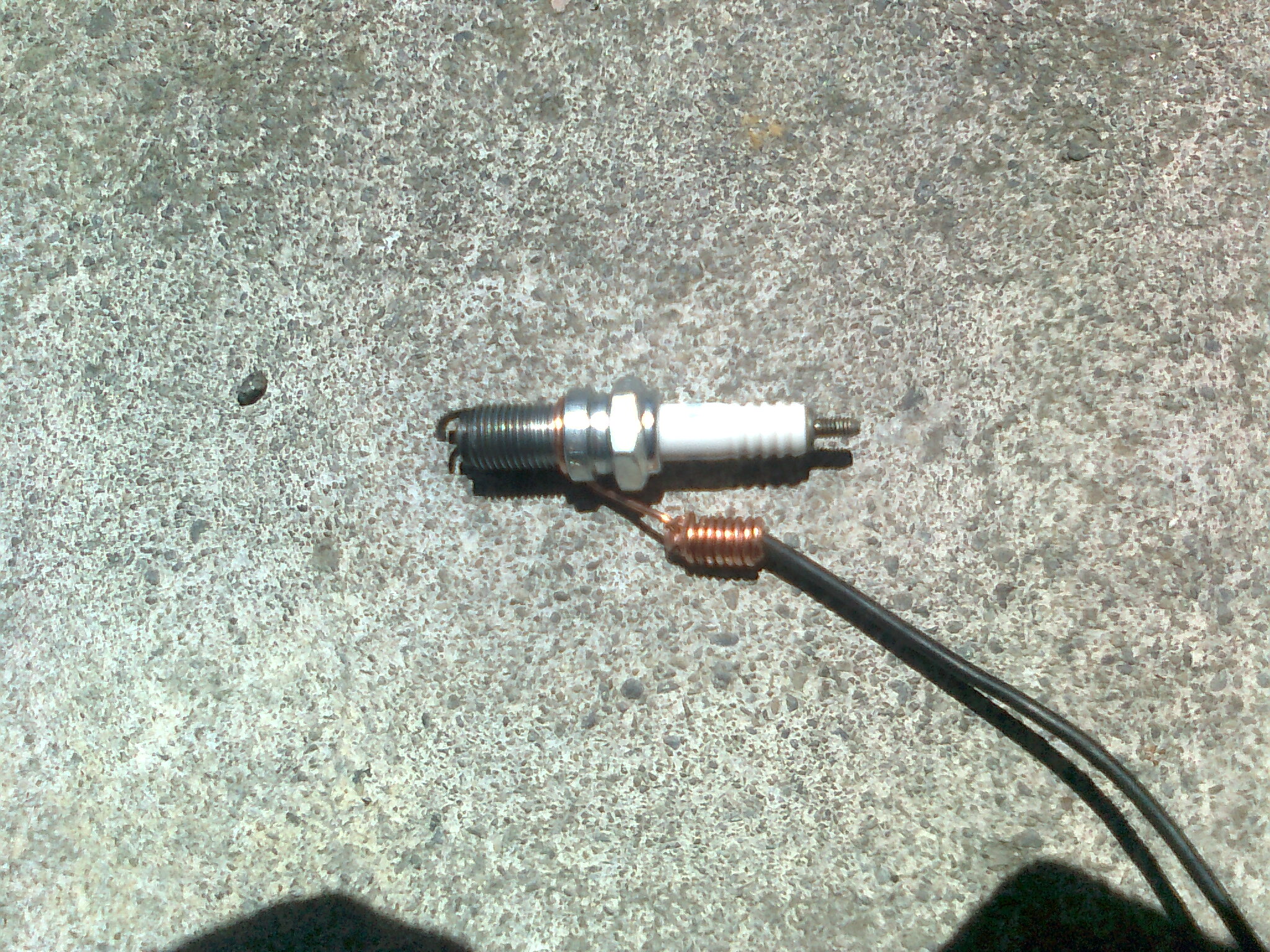

I had trouble fitting my sensor to the spark plug. The copper rod that connects to the copper washer that goes arround the spart plug is too fat. I first connected it to one of the head bolts. It does give a lower and slower heat reading, but once you know what a normal head temp is you can use that as a base.
I did mod mine with some copper so now it is measuring heat from the spark plug.

Back to top


IP Logged

rfw2003

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1108
Yantis, TX

Re: Temperature gage
Reply #8 - 02/18/13 at 12:04:08

The TrailTech Vapor speedo/tach has the option to use an actual temp sensor, which is what I did. I put it in the front port that is blocked off with the socket head plug. The highest I ever got in the summer which was on a 105°F day was 253°F oil temp and yes I did test the accuracy of the sensor with boiling water, and it was spot on.

R.F.

Back to top

1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler
