spark plug wrench (Read 113 times)

runrun

Junior Member

Offline

Thump thump

Posts: 77
Erie, CO

spark plug wrench
02/13/13 at 16:41:19

can someone please confirm the size of the savage spark plug for me? will an 18 mm wrench fit? i have a long 18 mm thin-walled spark plug socket, which fits the spare plug i got from the prior owner, but i'll be darned if i can get it onto the installed plug.

for one thing, there's a brass button thing that keeps the socket from lining up properly with the plug, but maybe my wrench is also the wrong size?

IP Logged

v-pilot Senior Member Offline Loud bikes rule! Posts: 257 Rexford NY Gender:	Re: spark plug wrench Reply #1 - 02/13/13 at 17:13:32 Yep, mines an 18mm. If the brass button thing is on the end of the plug it's for a different style of plug cap retainer. Some are made of aluminum too. It should unscrew so the stock cap can grip on the threads.
Back to top	Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x) Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650 Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250 IP Logged

runrun Junior Member Offline Thump thump Posts: 77 Erie, CO	Re: spark plug wrench Reply #2 - 02/14/13 at 06:30:28 thanks v. the brass thingy actually is part of the valve cover, and i will try a shorter 18 mm socket.
Back to top	IP Logged

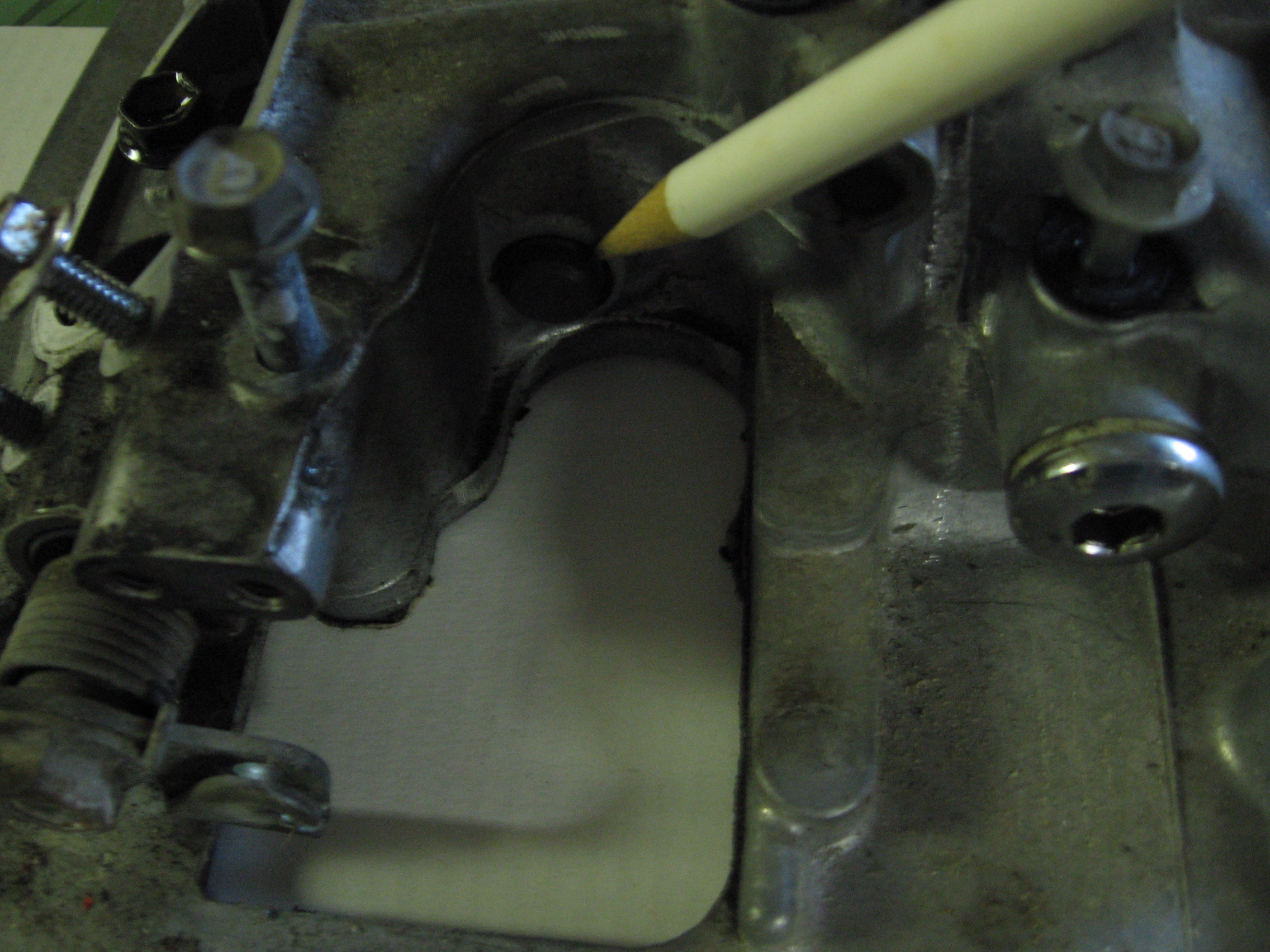

v-pilot Senior Member Offline Loud bikes rule! Posts: 257 Rexford NY Gender:	Re: spark plug wrench Reply #3 - 02/14/13 at 15:44:13 Hey runrun, if this is what you mean, it's one of the rocker shafts. It should only stick out about 3mm. As you can see, mine's all apart. The Zook tool has a bit of a taper on it, also has a rubber insert to hold the plug...probably done like that just for this reason
Back to top	IMG_0860.JPG Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x) Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650 Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250 IP Logged

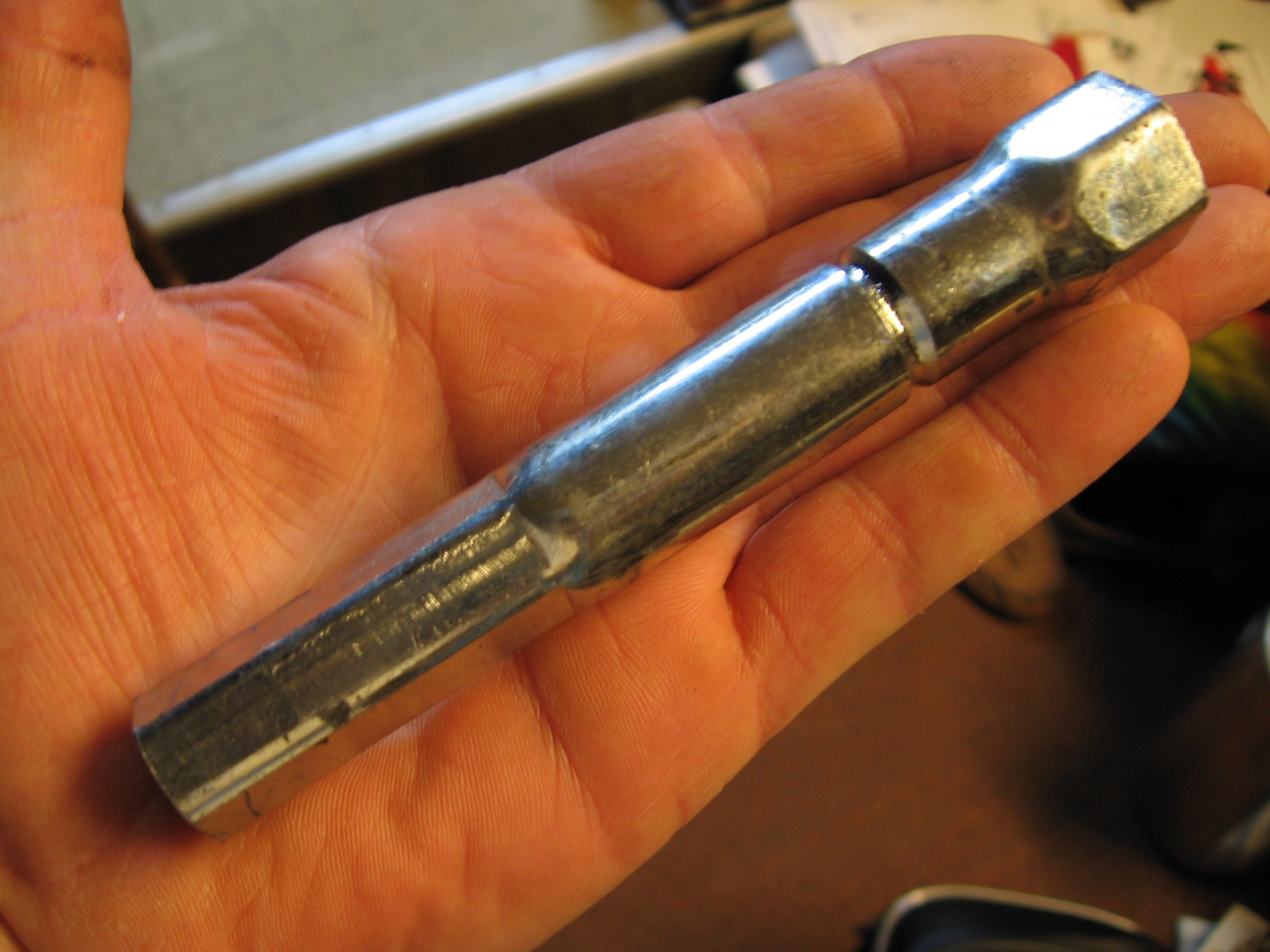

v-pilot Senior Member Offline Loud bikes rule! Posts: 257 Rexford NY Gender:	Re: spark plug wrench Reply #4 - 02/14/13 at 15:45:19 The tool
Back to top	IMG_0862.JPG Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x) Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650 Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250 IP Logged

Serious Thumper
2005 No Login

Offline

Professional
"scooter
trash".

Posts: 5207
Rosemark TN
Gender: male

Re: spark plug wrench
Reply #5 - 02/14/13 at 15:52:38

There are other plugs with different hex sizes that screw right in. I've run stock NGKs, NDs (different hex), Champion (5/8 and 13/16 hex), Bosch (oddball hex)... and if it somehow got a small engine plug swapped in it will be a 14mm hex (outboard, lawnmower, chainsaw, etc plugs WILL fit the Savage).

D series NGK plugs swap with a ton of other sizes. Good for availability, not so good if you weren't the one who swapped the plug last (or you did and forgot what you put in).

On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom

IP Logged
