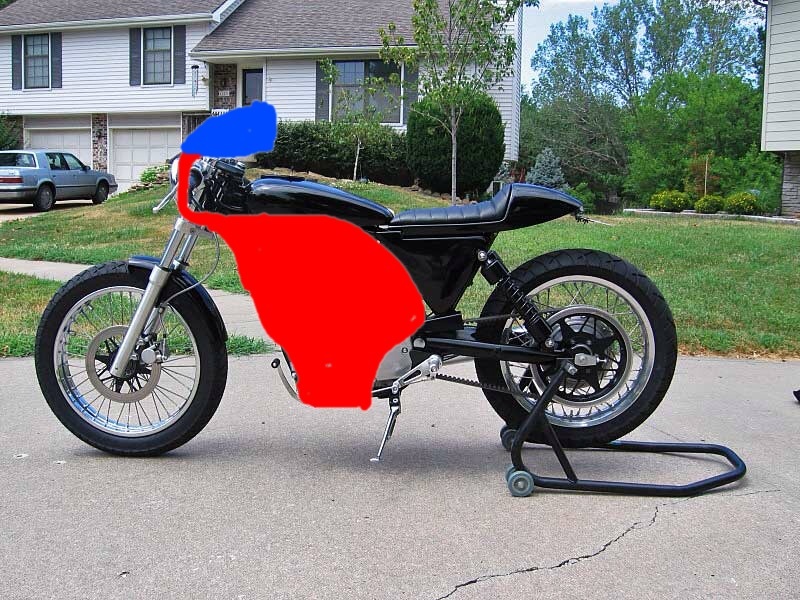

skelly15 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48 Gender:	Fairing idea's 01/21/13 at 17:10:34 Has anyone thought about putting a classic fairing or quarter fairing on a ryca kit? Something like this maybe? Was bored today and drew this up.
Back to top	image_049.jpg « Last Edit: 01/21/13 at 20:45:59 by skelly15 » IP Logged

Coaxial Full Member Offline SuzukiSavage.com Rocks! Posts: 184 Toronto, Ontario, Canada Gender:	Re: Fairing idea's Reply #1 - 01/21/13 at 20:23:31 http://imgur.com You cant link from your email. Drag and drop your image.
Back to top	2007 Suzuki Boulevard S40 Black. K&N Air Filter, Jardine Rumbler Exhaust, Raptor Petcock. 145 Main Jet, 45 Pilot Jet, 1.5x IP Logged

PerrydaSavage Serious Thumper Alliance Member Offline Riding "The Rock"! Posts: 3522 Republic of Newfoundland Gender:	Re: Fairing idea's Reply #2 - 01/22/13 at 00:30:36 Have thought that an "SOA-style" bikini fairing would look great on a stock or Bobber-ized LS ...
Back to top	Before you diagnose yourself with depression or low self-esteem, first make sure you are not, in fact, just surrounded by arseholes! IP Logged

scubachef

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 140

Re: Fairing idea's
Reply #3 - 01/23/13 at 10:12:56

I have been toying with just that idea. If you hit up airtech-streamlining.com they have all the fairing options you might need. I am looking at the Triumph "letterbox" style fairing. I think I am going to turn the savage into a vintage racer style. I've not seen it done yet....so I guess we can race to see who is first

This is my bike with the 750 tank I am going to use:

and a bike that has the general look I envision.

Back to top

IP Logged

skelly15 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48 Gender:	Re: Fairing idea's Reply #4 - 01/23/13 at 17:32:33 Yeah, I've seen that website and I cannot decide between a quarter,half, or full fairing. A fly screen like on the bsa mc1 is also tempting. How difficult was it to fit that tank to the savage frame? I'm worried that the savage tank is to wide for a fairing.
Back to top	IP Logged

scubachef Full Member Offline SuzukiSavage.com Rocks! Posts: 140	Re: Fairing idea's Reply #5 - 01/23/13 at 22:22:43 Fitting the tank is not a big deal. The length of the tank is the biggest hurdle, but since my seat and seating position are not stock it isn't much of a problem. I'm thinking something like the bike pictured or a old yamaha tz styled bike are the ticket
Back to top	IP Logged

teabowl13

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 535

Re: Fairing idea's
Reply #6 - 01/24/13 at 07:27:26

I'd love to see more pictures of it with that Yamaha tank; I've always loved the look of those tanks, but I thought it would look too big on a Savage. Looks just about right in your photo above! And it'll be perfect with the fairings you are planning.

I'm sure you could fit just about any style fairing onto the bike that you want; you just have to fabricate the mounting hardware and brackets. The bike is so narrow that it should be perfect for some of those lightweight vintage bike fairings... Can't wait to see what you come up with!

I saw that CB550 you posted on Bikeexif I think; it's gorgeous!!

Back to top

VINTAGE ROADSTER BUILD: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1323582921

IP Logged

skelly15 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48 Gender:	Re: Fairing idea's Reply #7 - 01/24/13 at 13:59:03 Yeah, I second more pics of the Yamaha tank!
Back to top	IP Logged

scubachef Full Member Offline SuzukiSavage.com Rocks! Posts: 140	Re: Fairing idea's Reply #8 - 01/24/13 at 21:39:26 This is the only other pic I have of the the tank fitted on the bike at the moment. The tank is off the bike for metal/body work. It is pretty wide....but I like it
Back to top	IP Logged

skelly15 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48 Gender:	Re: Fairing idea's Reply #9 - 01/25/13 at 05:43:36 It actually looks slimmer than a ryca tank. What kind of metal work/body work has to be done? ( I see there's a dent)
Back to top	IP Logged

scubachef

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 140

Re: Fairing idea's
Reply #10 - 01/25/13 at 09:16:23

I have not measured the tank exactly, but by eye and how it sits on the bike it is not any wider than the front of a stock tank. The difference is it doesn't taper like the stock tank.

It has the dent that is visable on the top, one deep dent on each side and a spot on the front left that needed to be pulled out along with just general bodywork issues.....at least it used to have all that going on, nothing a stud gun couldn't fix Wink

I will be making slow progress on the bike, but once I am into it I will take plenty of pics and post progress. I have changed my mind, and the bike, many times thusfar.....but I think the vintage race bike style is going to be the final incarnation of my savage.

Back to top

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Fairing idea's Reply #11 - 01/25/13 at 11:52:30 Ive used stud guns doing body work. The metal glows red while it welds to the bent part. My ? is, does it get hot enough to lite gas fumes?
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

scubachef Full Member Offline SuzukiSavage.com Rocks! Posts: 140	Re: Fairing idea's Reply #12 - 01/25/13 at 21:44:27 I'm definitely not an expert so I went the very safe route and purged the tank. It has not seen gas in years so I thought it might not really be needed but it was worth being safe. My guess is yes, it is possible that it could ignite the fumes.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Fairing idea's
Reply #13 - 01/28/13 at 05:18:48

justin_o_guy2 wrote on 01/25/13 at 11:52:30:

Ive used stud guns doing body work. The metal glows red while it welds to the bent part. My ? is, does it get hot enough to lite gas fumes?

Unlike auto fuel tanks that are big and have internal baffles....motorcycle tanks are not a real problem to weld. If you drain the fuel out, remove the cap and petcock, and let them dry for a day or two there is not issue with welding and fire/explosion. Setting them out in the sun for a day is even better. If you stick your nose in the opening and don't smell gas fumes......your good to go.

Most tanks that I have worked on were from project bikes.....and did not have fuel in them for a couple of years!

Back to top

Someday I will be old......But not today!

IP Logged
