New headlight and need a bracket (Read 262 times)
Chris Roth
Junior Member
Offline
1995 Savage LS 650
Posts: 64
Collinsville, IL
Gender:
New headlight and need a bracket
12/04/12 at 11:20:11
I ordered a new aftermarket headlight and it looks pretty good, all black HID. Problem is it has only the single post for mounting. My bike had a severely cracked stock plastic/chrome one with the 2 bolts integrated nderneath.
Does anyone make a good headlight adapter bracket for our bikes? I have searched a lot at online stores and either I am using the wrong terms or nobody makes these. Only one I have seen was on ebay, a bit overpriced but if I am desperate...
one other thing, would having no headlight make the bike not start? I destroyed the old one coming off and cannot mount new one yet. But it won't start and not sure if this is related.
Back to top
IP Logged
Demin
Serious Thumper
Offline
We need more
chlorine in the gene
pool
Posts: 2435
Warren,Ohio
Gender:
Re: New headlight and need a bracket
Reply #1 -
12/04/12 at 13:21:57
Drill a 3/8" hole in the bottom tree and mount it.
Back to top
Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE
finish '77 Yamaha XS650 bobber Bought another one
finish'79 Harley custom bobber(NEXT)
IP Logged
Chris Roth
Junior Member
Offline
1995 Savage LS 650
Posts: 64
Collinsville, IL
Gender:
Re: New headlight and need a bracket
Reply #2 -
12/05/12 at 06:24:12
Demin wrote
on 12/04/12 at 13:21:57:
Drill a 3/8" hole in the bottom tree and mount it.
I was concerned about weakening that from being solid support system for the front fork. With two holes fairly close together, putting another between them made me think one accidental curb bump and SNAP.
Is this how others are approaching an aftermarket headlight mount?
Back to top
IP Logged
Gyrobob
Serious Thumper
Offline
Posers ain't
motorcyclists
Posts: 2571
Newnan, GA
Gender:
Re: New headlight and need a bracket
Reply #3 -
12/05/12 at 07:18:40
I am going to mount a train light using side mounts attached to the fork tubes.
Back to top
If you think there's good in everyone, you haven't met everyone.
IP Logged
Paladin.
Serious Thumper
Offline
Hamster
Posts: 4929
Sunny Southern California
Gender:
Re: New headlight and need a bracket
Reply #4 -
12/05/12 at 07:25:02
You can use just a small piece of steel with holes to match with the stock mount and a hole for the new.
Problem: headlight was too far forward:
Had a little of aluminum angle, cut four pieces, small holes to for small bolts on the sides, two holes down for the stock mount, one up for the headlight:
Worked Jes' Fine!
Back to top
IP Logged
Demin
Serious Thumper
Offline
We need more
chlorine in the gene
pool
Posts: 2435
Warren,Ohio
Gender:
Re: New headlight and need a bracket
Reply #5 -
12/05/12 at 07:28:11
I've put probably 20,000 miles on since I put this light on and no problems.And I ride'er hard at times.
Back to top
Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE
finish '77 Yamaha XS650 bobber Bought another one
finish'79 Harley custom bobber(NEXT)
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28678
Tucson Az
Gender:
Re: New headlight and need a bracket
Reply #6 -
12/05/12 at 07:31:00
Somebody here made a cute little adapter (I was hoping they would chime in)... maybe 1" tall and 2" wide...
It was a little open ended, metal, cube... 2 holes on the bottom, a single hole on top...
Use pretty sturdy stock,, to prevent vibration... a jiggly headlight is really annoying at night....
Okay,.. it was Paladin,... and he just beat me to the post...
...
Back to top
Ludicrous Speed !... ...
...
IP Logged
Demin
Serious Thumper
Offline
We need more
chlorine in the gene
pool
Posts: 2435
Warren,Ohio
Gender:
Re: New headlight and need a bracket
Reply #7 -
12/05/12 at 07:34:04
Pssst......Look 2 posts up sero.
So, I'm a slow typer...
... Serow
Back to top
Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE
finish '77 Yamaha XS650 bobber Bought another one
finish'79 Harley custom bobber(NEXT)
IP Logged
ToesNose
Serious Thumper
Offline
Pardon me, do you
have Hot Sauce?
Posts: 1993
Mooresville, NC
Gender:
Re: New headlight and need a bracket
Reply #8 -
12/05/12 at 07:50:52
I used an old fire extinguisher mount I had laying around and used the two threaded bolt mounts for the wire retainer on the top plate. I'd do a link but I'm on my phone ATM.
Back to top
The Suzuki LS650, bringing Miles of Smiles everywhere!
IP Logged
Greg
Serious Thumper
Offline
Molon Labe
Posts: 1251
Southeast PA, uSA
Gender:
Re: New headlight and need a bracket
Reply #9 -
12/05/12 at 09:06:50
Paladin. wrote
on 12/05/12 at 07:25:02:
Had a little of aluminum angle, cut four pieces, small holes to for small bolts on the sides, two holes down for the stock mount, one up for the headlight:
Would a piece of square tubing work just as well?
Back to top
2002 Savage.
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28678
Tucson Az
Gender:
Re: New headlight and need a bracket
Reply #10 -
12/05/12 at 09:14:51
Greg wrote
on 12/05/12 at 09:06:50:
Would a piece of square tubing work just as well?
I was gonna' say that... but, "square tubing" just didn't sound like it could be right...
...
Back to top
Ludicrous Speed !... ...
...
IP Logged
Chris Roth
Junior Member
Offline
1995 Savage LS 650
Posts: 64
Collinsville, IL
Gender:
Re: New headlight and need a bracket
Reply #11 -
12/05/12 at 12:15:07

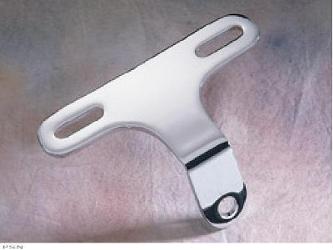

I was hoping for a simple adapter like the ones found commonly for the Harley bikes which apparently have wider set mounts. I may be able to pull something together. Although I lack any skills or tools for welding, I can handle the drilling into something that may be the right size to start with.
Back to top
IP Logged
ToesNose
Serious Thumper
Offline
Pardon me, do you
have Hot Sauce?
Posts: 1993
Mooresville, NC
Gender:
Re: New headlight and need a bracket
Reply #12 -
12/05/12 at 13:03:43
Hey Chris here's the mount that I made from the fire extinguisher bracket, I only used a dremmel, file and drill.
Mounted with the bucket's block-
Here's the link to that thread-
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1347585851/30
Back to top
The Suzuki LS650, bringing Miles of Smiles everywhere!
IP Logged
Chris Roth
Junior Member
Offline
1995 Savage LS 650
Posts: 64
Collinsville, IL
Gender:
Re: New headlight and need a bracket
Reply #13 -
12/05/12 at 13:19:24
ToesNose wrote
on 12/05/12 at 13:03:43:
Here's the link to that thread-
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1347585851/30
Link doesn't work for me, gives a DNS error.
Back to top
IP Logged
EJID
Serious Thumper
Offline
Work to ride and
ride to work.
Posts: 1536
Pocatello, ID
Gender:
Re: New headlight and need a bracket
Reply #14 -
12/05/12 at 13:29:44
Chris Roth wrote
on 12/05/12 at 13:19:24:
ToesNose wrote
on 12/05/12 at 13:03:43:
Here's the link to that thread-
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1347585851/30
Link doesn't work for me, gives a DNS error.
Try this link instead...
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1347585851/37#37
Back to top
05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500
IP Logged
