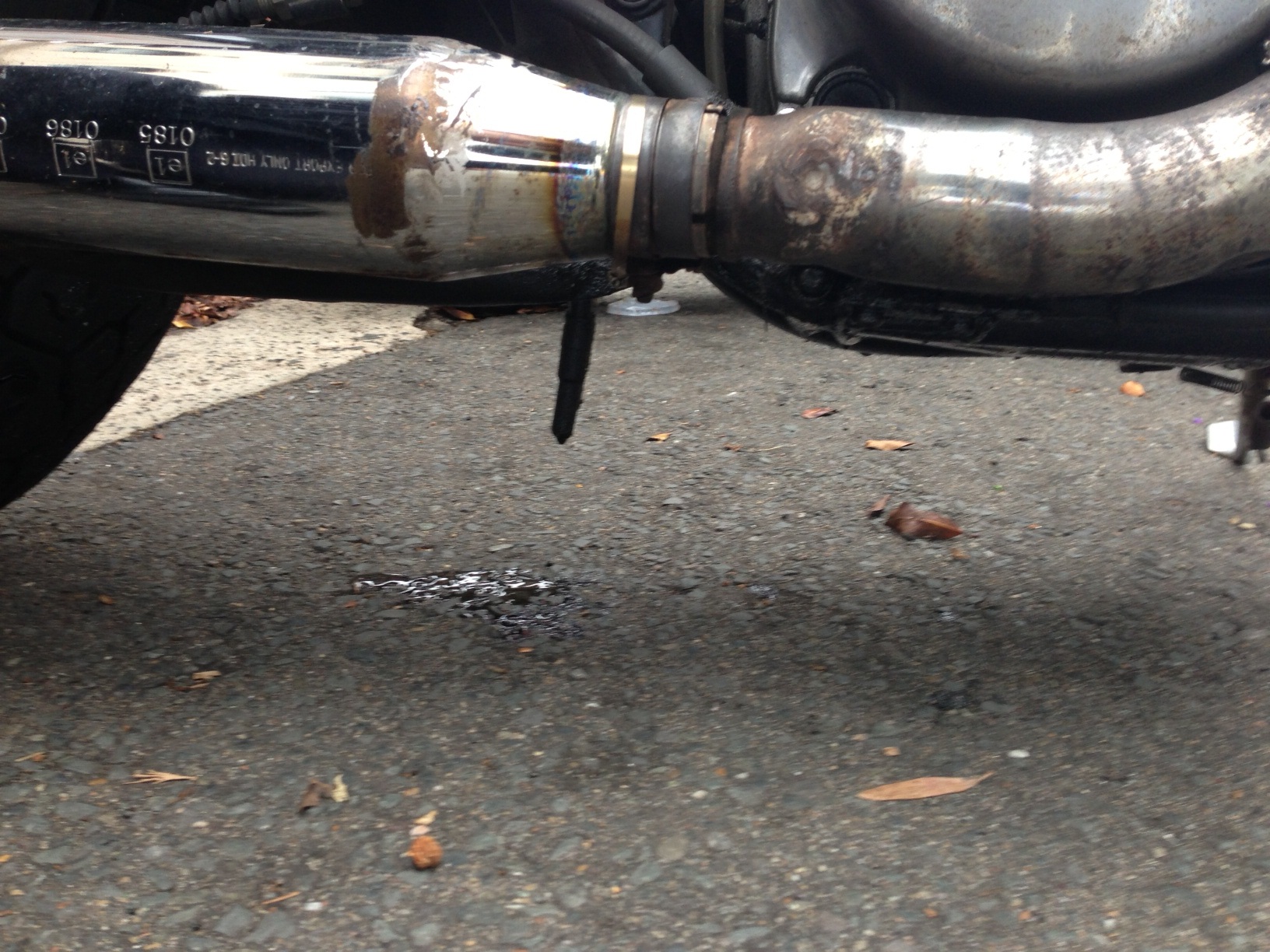

Dave-Aus YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22	Leak... 12/03/12 at 00:33:43 hi guys got my bike delivered today - 1986 Savage in Australia. no leaks when the truck dropped it off, after a short ride its dripping from under the bike, seems to be coming off the tip of the little rubber thing hanging down. any directions on what it may be? photo attached.
Back to top	photo2.jpg IP Logged

Dave-Aus

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 22

Re: Leak...
Reply #1 - 12/03/12 at 01:51:21

So after a closer look and some research, seems to be coming dripping from the air box breather tubes.

bit of oil (mainly dried) around the base of join for the clutch cover too.

uh oh Sad

I suppose I have a bit of work ahead of me.

Would i be right in saying...

The airbox is probably full of fuel / oil and I should NOT turn the bike on again.

the oil level window is solid black and i cant see in. I'm guessing it just has old oil staining the glass and needs a clean... or is full of fuel / oil ?

- The carbs need a good cleaning (are they the most likely cause of my issue for the oil / fuel spilling into the air box?)
- i should order a new air filter and oil filter
- i should change the gasket for the clutch cover
- i should put new oil and fuel in

anything else i should be looking at while i'm at it?

Back to top

IP Logged

Dave-Aus YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22	Re: Leak... Reply #2 - 12/03/12 at 03:07:29 May also be the standard petcock leaking from vacuum line?
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Leak... Reply #3 - 12/03/12 at 03:40:29 the oil level window is solid black and i cant see in. I'm guessing it just has old oil staining the glass and needs a clean... or is full of fuel / oil ? Either over filled w/ oil OR, petcock is messed up & crank is full O gas.,in th oil. Drain it & smell it,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17898
Camp Springs, Kentucky
Gender: male

Re: Leak...
Reply #4 - 12/03/12 at 04:46:52

I agree with Jog. Change oil and filter....you should get about 2 quarts of oil out and it should not smell like gas. Do the the Petcock test you can find in the Tech Section.

The little hose you are looking at comes from the air box and is supposed to ohave a plug in the end that you only take out when changing oil. This is the drain for the part of the air box that the engine breather hose connects to.....and normally there is just a little oil and water condensation in this hose. If your crankcase is overfilled with oil and/or fuel.....then more than a normal amount of oil is blown out.

Here is the link to the petcock test....you can find more about the petcock in the Tech Section.....find the index at the top of the page.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1251932429/1

Do you have an owners manual yet?

Back to top

Someday I will be old......But not today!

IP Logged

360k+ Serious Thumper Offline Savage heart of darkness Posts: 680 Cartersville, GA Gender:	Re: Leak... Reply #5 - 12/03/12 at 06:56:18 Also pull off the air filter cover, and look inside. A few minutes, and that may tell you a lot. Is that the way the pipe connection came, or did you remove the coupling cover?
Back to top	The JOURNEY is the reward! IP Logged

J C Stokes Full Member Offline SuzukiSavage.com Rocks! Posts: 159	Re: Leak... Reply #6 - 12/03/12 at 10:15:04 There's a downloable manual for about$US12
Back to top	IP Logged

HondaLavis

Senior Member

Offline

It's nothing
personal; the other
one came first.

Posts: 451
Plano, TX

Re: Leak...
Reply #7 - 12/03/12 at 20:44:00

When you get a "new" old bike, I'd always give it a thorough once over to check everything.

-As mentioned, that drain tube from the airbox normally has some oil and water in it, and it's SUPPOSED to be emptied at every oil change. I wouldn't be the least bit surprised to find a neglectful PO didn't realize he was supposed to do that. Empty it and carry on.

-Your oil around the clutch cover could simply be over spray. Clean everything thoroughly, go for a ride, and observe.

-Open up your airbox and check out your filter, then determine if you need to replace it. You can also research the "nu-foam" upgrade where you remove the paper element and simply build a less restrictive air filter using the old metal frame.

-It never hurts to change your oil and filter, unless you use the wrong stuff. Go get some oil that's well endowed with ZDDP like Rotella, get a new filter, and install it the right way! If your oil window doesn't clear up, you might try putting some kerosene or diesel in your CRANKCASE after you've drained your oil. Let it soak for a while, and it'll clean things right up. Drain it off before you add your oil, but don't worry; you won't catch fire. Cool

Manuals are ALWAYS a great thing to have. I've downloaded the clymer's manual, owner's manual, parts manual/diagram... all free, all thanks to this website. Wink

Back to top

"You ride a single cylinder motorcycle??"

"When you're good, one is all you need." Wink

I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Leak... Reply #8 - 12/03/12 at 20:46:44 & Yes, there is a hose under that that is supposed to be drained at oil change time,.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Dave-Aus YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22	Re: Leak... Reply #9 - 12/03/12 at 21:37:16 Apparently Rotella isnt sold in Australia, however, Shell Rimula is similar. Does this oil seem suitable? 1200 zddp which i think is acceptable http://www.supercheapauto.com.au/online-store/products/Shell-R3-X-Engine-Oil-...
Back to top	IP Logged

Dave-Aus

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 22

Re: Leak...
Reply #10 - 12/04/12 at 00:08:02

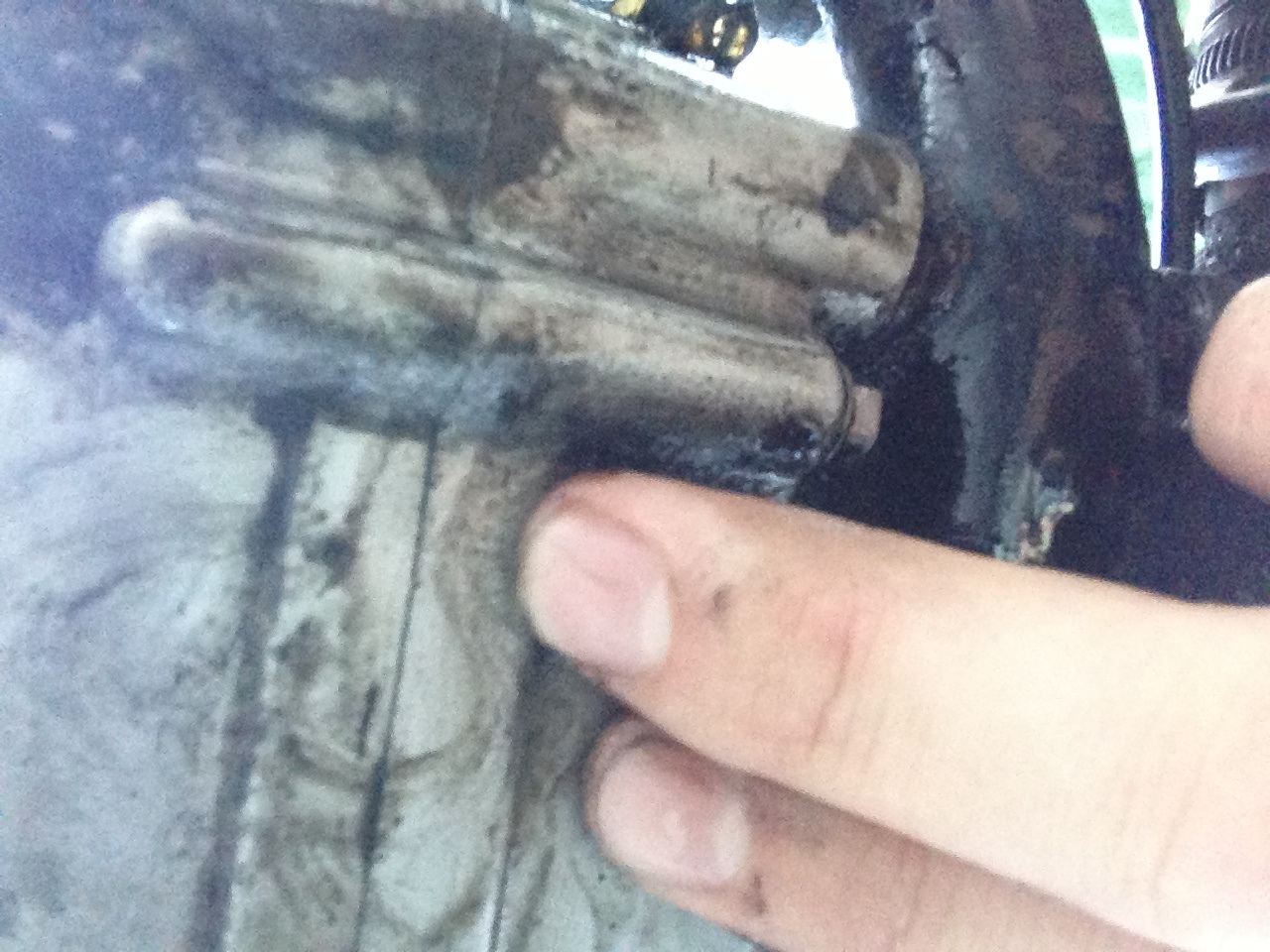

So yesterday I wiped the bottom of the engine down with paper towel to dry it off

Came home tonight and there is oil on the bottom of the engine

Seems to be coming from the join that runs right in the middle of the two engine halves

This photo is taken from under the bike, bottom back of engine closest to rear wheel

I suppose it could be tracking down from higher up? If it is indeed leaking from this join, would this mean split the case in half to put a new gasket in?

Have ordered a new air and oil filter, oil, carb rebuild kit and a raptor

Back to top


IP Logged

ohio thumper Full Member Offline SuzukiSavage.com Rocks! Posts: 154	Re: Leak... Reply #11 - 12/04/12 at 02:48:28 check the bolts that your pegs are mouted to. they go thru the cases. tightening them up might cure the oil leak from between cases.
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17898 Camp Springs, Kentucky Gender:	Re: Leak... Reply #12 - 12/04/12 at 04:59:46 The cases are not joined with a gasket - a sealant is applied when assembling the halves. Get some degreaser and wash your bike - then look for the leak. As mentioned previously - check to see if the engine bolts are all snugged up.
Back to top	Someday I will be old......But not today! IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Leak... Reply #13 - 12/04/12 at 09:25:24 Y3ep,, tighten the peg bolts up. Itll vibrate less & stop that leakin.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

houstonbofh

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 420
Houston, TX
Gender: male

Re: Leak...
Reply #14 - 12/04/12 at 09:40:20

A few comments...

1) Slow down. Find and fix one problem at a time. Going in and "fixing" a bunch of things is a recipe for disaster.

2) Clean the engine throughly. I recommend a few cans of break and parts cleaner. That thing is a mess, and there is no way to tell where the leak is coming from. There are a few common places these engines leak from, and they all have drastically different methods of fixing.

3) Do the regular service. You need a known base to work from, so change the oil and filter, and examine or change the air filter, and drain and clean out the air box. Use that break and parts cleaner again. Also, smell the oil to see if it reeks of gas...

As for the Rotella vs Rimula, I found this.
http://www.bobistheoilguy.com/forums/ubbthreads.php?ubb=showflat&Number=2426403
