SuzukiSavage.com - Crankcase breatherhose filter?

RobSchneider Junior Member Offline what? Posts: 72	Crankcase breatherhose filter? 10/24/12 at 03:48:19 Have the K&N installed, want to put a filter on the crankcase breatherhose... Does anyone know which one I have to look for? Looking for a cheap solution ofcourse.
Back to top	Follow me on twitter @BikerChicken IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: Crankcase breatherhose filter? Reply #1 - 10/24/12 at 04:11:25 I usually use the ones from Autozone.They look like a cone airfilter only smaller.Under 10 bucks.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

RobSchneider Junior Member Offline what? Posts: 72	Re: Crankcase breatherhose filter? Reply #2 - 10/24/12 at 05:27:17 Demin wrote on 10/24/12 at 04:11:25: I usually use the ones from Autozone.They look like a cone airfilter only smaller.Under 10 bucks. Can you tell me the size? Maybe I can order it somewhere online, price sounds awesome
Back to top	Follow me on twitter @BikerChicken IP Logged

Gyrobob

Serious Thumper

Offline

Posers ain't
motorcyclists

Posts: 2571
Newnan, GA
Gender: male

Re: Crankcase breatherhose filter?
Reply #3 - 10/24/12 at 06:02:44

RobSchneider wrote on 10/24/12 at 03:48:19:

Have the K&N installed, want to put a filter on the crankcase breatherhose...
Does anyone know which one I have to look for?
Looking for a cheap solution ofcourse.

Just putting a filter on the end of a hose and venting the fumes to the atmosphere is illegal and pisses off the tree-huggers.
-- In the ATL area, the local bike shops (especially the ones that build custom bikes) have occasional "conversations" with the gendarmerie about violating emissions requirements.
-- Technically, you aren't allowed to modify the stock smog system. In actuality, most the authorities around here will be okay with the crankcase fumes being dumped into the intake system somewhere.
-- It annoys me that RYCA did not have any way to handle this issue. They don't even mention it. How do they get away with that out in CA?

On the Double RYCA build, this is how we set up a really cheap but stock OE-looking solution to crankcase emissions. See reply #130. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1304722902/120

Back to top

If you think there's good in everyone, you haven't met everyone.

IP Logged

Paraquat Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2206	Re: Crankcase breatherhose filter? Reply #4 - 10/24/12 at 06:07:49 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1345727402/2#2 Reply #2 shows what I did. Someone, I think it was Cavi Mike? Did a filter that had a 90 degree fitting on it for the breather. --Steve
Back to top	IP Logged

Gyrobob Serious Thumper Offline Posers ain't motorcyclists Posts: 2571 Newnan, GA Gender:	Re: Crankcase breatherhose filter? Reply #5 - 10/24/12 at 06:33:04 Paraquat wrote on 10/24/12 at 06:07:49: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1345727402/2#2 Reply #2 shows what I did. Someone, I think it was Cavi Mike? Did a filter that had a 90 degree fitting on it for the breather. --Steve See reply #130. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1304722902/120
Back to top	If you think there's good in everyone, you haven't met everyone. IP Logged

Paraquat Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2206	Re: Crankcase breatherhose filter? Reply #6 - 10/24/12 at 09:07:54 I apologize. It was Gyrobob. --Steve
Back to top	IP Logged

Gyrobob

Serious Thumper

Offline

Posers ain't
motorcyclists

Posts: 2571
Newnan, GA
Gender: male

Re: Crankcase breatherhose filter?
Reply #7 - 10/24/12 at 10:33:17

Paraquat wrote on 10/24/12 at 09:07:54:

I apologize. It was Gyrobob.

--Steve

No apology necessary. I'm flattered, in fact, you remembered it and offered it up as an option.

The concept seems to be working well. I have a few hundred miles on mine now.
-- There aren't any dribbles anywhere, and the upstream side of the carb is not getting stained or anything.
-- The hose and automotive breather unit appear to have enough volume for the huffing and puffing into that tube.
-- The whole thing is inside a closed system so there isn't any way for dust or other particles to get inside.

Back to top

If you think there's good in everyone, you haven't met everyone.

IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18139 Camp Springs, Kentucky Gender:	Re: Crankcase breatherhose filter? Reply #8 - 10/24/12 at 12:13:41 I am surprised how little junk comes out of the breather tube. That rolled up screen inside the head cover must do a good job of filtering out the oil particles from the air pulses. I do like the way that Gryobob solved the issue.
Back to top	Someday I will be old......But not today! IP Logged

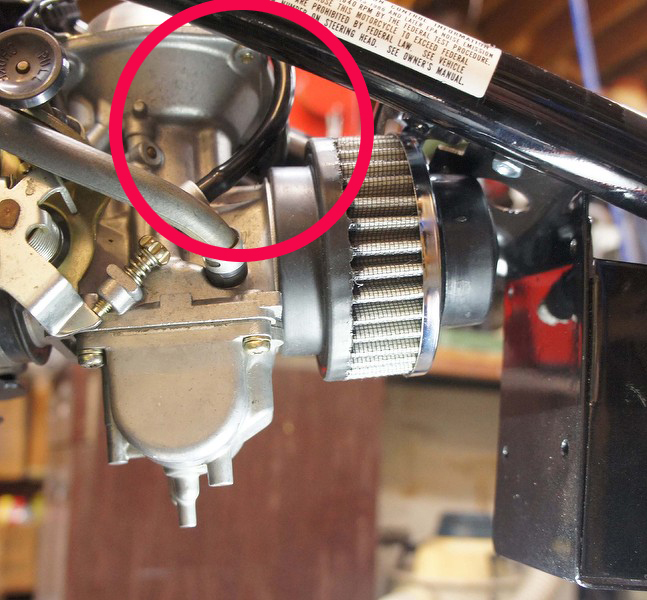

RobSchneider Junior Member Offline what? Posts: 72	Re: Crankcase breatherhose filter? Reply #9 - 10/25/12 at 03:38:59 Gyrobob wrote on 10/24/12 at 06:33:04: --Steve See reply #130. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1304722902/120 [/quote] Nice, but where are these hoses go to?
Back to top	1843990-T800600.jpg Follow me on twitter @BikerChicken IP Logged

Gyrobob Serious Thumper Offline Posers ain't motorcyclists Posts: 2571 Newnan, GA Gender:	Re: Crankcase breatherhose filter? Reply #10 - 10/25/12 at 04:41:55 They are part of the float bowl venting system. Just route them forward, up between the spine of the frame and the tank.
Back to top	If you think there's good in everyone, you haven't met everyone. IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: Crankcase breatherhose filter? Reply #11 - 10/25/12 at 04:49:29 The filter/breather I use just has a 3/8ths hose barb that slides into the original vent hose.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

RobSchneider Junior Member Offline what? Posts: 72	Re: Crankcase breatherhose filter? Reply #12 - 10/25/12 at 06:14:37 Gyrobob wrote on 10/25/12 at 04:41:55: They are part of the float bowl venting system. Just route them forward, up between the spine of the frame and the tank. Thanks for the reply, No filter needed?
Back to top	Follow me on twitter @BikerChicken IP Logged

Gyrobob

Serious Thumper

Offline

Posers ain't
motorcyclists

Posts: 2571
Newnan, GA
Gender: male

Re: Crankcase breatherhose filter?
Reply #13 - 10/25/12 at 06:53:41

No filter because there is very little movement of air. Those tubes are just vents to make sure the pressure inside bowl is the same as ambient.

Your comment is worth pondering though. There are so many little creepy crawly things in the southeast, it might not be a bad idea to just cover the ends of the tubes with some panty hose material or gauze or some such.

Back to top

If you think there's good in everyone, you haven't met everyone.

IP Logged

Badass94Cad

Senior Member

Offline

This space for rent

Posts: 313
Mass-->Jerz-->PA!
Gender: male

Re: Crankcase breatherhose filter?
Reply #14 - 10/25/12 at 10:41:58

Paraquat wrote on 10/24/12 at 06:07:49:

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1345727402/2#2
Reply #2 shows what I did.

Someone, I think it was Cavi Mike?
Did a filter that had a 90 degree fitting on it for the breather.

--Steve

That's what I did too...90 degree fitting with barbed ends, with aa discrete zip tie to the frame.
