fitting custom gas tank (Read 226 times)

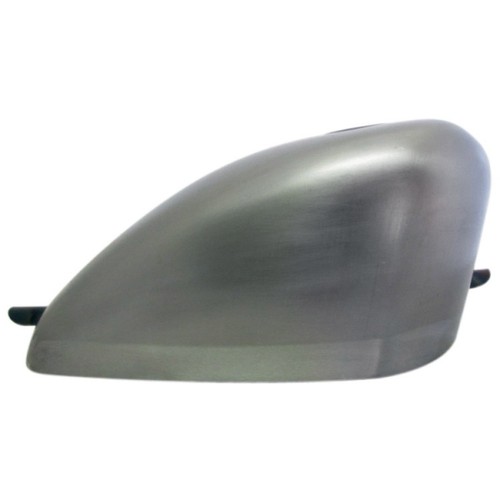

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	fitting custom gas tank 09/11/12 at 19:48:26 Hi, Has anyone fitted a custom gas tank? I have a Sporty Frisco Mount Chopper Motorcycle Gas Tank that I would like to fit to my Savage. Has anyone fitted on of these? Cheers Paul
Back to top	KGrHqUOKiME6YPpnGWdBOn2ReZNtg60_12.JPG IP Logged

CalisOsin Senior Member Offline Rather die, than live down on my knees. Posts: 297 Orange County, Ca Gender:	Re: fitting custom gas tank Reply #1 - 09/11/12 at 22:28:51 I'd search for Demin. I believe this is the same tank he used in one of his builds.
Back to top	'97, k&n airfilter, bcb pipe, custom leather seat, monoshock, custom bars IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: fitting custom gas tank Reply #2 - 09/11/12 at 22:57:09 Thanks i will do that now
Back to top	IP Logged

Demin

Serious Thumper

Offline

We need more
chlorine in the gene
pool

Posts: 2435
Warren,Ohio
Gender: male

Re: fitting custom gas tank
Reply #3 - 09/12/12 at 06:02:24

My tank(s)have a little bit different mounting tabs on them.But that shouldn't be a problem.
This is the first '87 I did.I welded a connector nut(just a nut about 2" long) to the back bone where I wanted it to sit.The rear mount,I used the mount from the stock tank and welded it to the Sporty tank.

The tank mounts you have are like the ones on my Saga tank on the '86.All I did,for the front mount was drill and tap a 3/8ths hole in the back bone and bolted it in there.The rear I had to custom make mounts because I had to change out some of the backbone.But on yours I would just weld a tab farther back to go into the stock tank location.

Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE
finish '77 Yamaha XS650 bobber Bought another one
finish'79 Harley custom bobber(NEXT)

IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: fitting custom gas tank Reply #4 - 09/12/12 at 06:08:17 And the one I'm doing now has rubber front mounts.Just welded a tab on the rear to bolt into the little crossbrace where the seat/stock mount go. Rear mount Bolt hole at the bottom of the pic are the front mount bolts.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: fitting custom gas tank Reply #5 - 09/12/12 at 11:47:56 Thanks Demin, that helps heaps.
Back to top	IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: fitting custom gas tank Reply #6 - 09/13/12 at 05:52:52 Kool.Glad I could help.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

ST33ZY-G YaBB Newbies Offline Posts: 3 Bay Area, CA Gender:	Re: fitting custom gas tank Reply #7 - 10/17/12 at 11:02:58 Hey Demin what tank are you using in the first picture with the purple tank and silver flames i found one from lowbrow that looked pretty similar,vvvv
Back to top	IP Logged

ST33ZY-G YaBB Newbies Offline Posts: 3 Bay Area, CA Gender:	Re: fitting custom gas tank Reply #8 - 10/17/12 at 11:03:11 http://www.lowbrowcustoms.com/index.php?l=product_detail&p=412
Back to top	IP Logged
