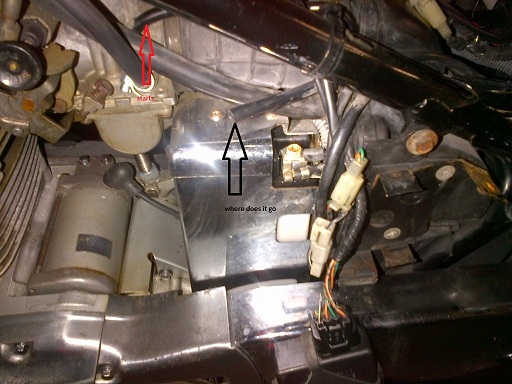

1999savage YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11	Gas Leak 07/28/12 at 10:01:23 Hello all i just fixed my exaust and when i went to start and take a quick ride i niticed gas was pissing out i found the hose where it was leaking but dont know where it connects to.
Back to top	leak1.jpg IP Logged

arteacher

Serious Thumper

Offline

Ride as if your
naked and invisable!

Posts: 2581
London ontario
Gender: male

Re: Gas Leak
Reply #1 - 07/28/12 at 10:25:13

That is one of the two vent tubes that vent the float bowl. If gas is "p!ssing" out there is a problem with your fuel level being too high in the float bowl. They tuck up into the frame center tube. Tap on the side of the carb sharply with a screw driver handle to see if the float is stuck. If the gas stops coming out the vent the float was stuck. It could also be dirt on the needle valve.

Back to top

white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt

IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28657
Tucson Az
Gender: male

Re: Gas Leak
Reply #2 - 07/28/12 at 10:26:42

That's a carb vent tube... you have two of them...
They go like this , and attach to nothing, open to atmosphere...
They must remain open, you can't block them..
If it's leaking, your float is stuck. (try rapping the bowl with the handle of a screwdriver)... if that don't work, you have to open the bowl and fix either the float or float needle seat...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

1999savage YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11	Re: Gas Leak Reply #3 - 07/28/12 at 10:55:51 ok Thank you guys i will try it when i get home. is this commen for this bike?
Back to top	IP Logged

wambr

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 610
Russia, Samara
Gender: male

Re: Gas Leak
Reply #4 - 07/28/12 at 11:18:54

arteacher wrote on 07/28/12 at 10:25:13:

That is one of the two vent tubes that vent the float bowl. If gas is "p!ssing" out there is a problem with your fuel level being too high in the float bowl. They tuck up into the frame center tube. Tap on the side of the carb sharply with a screw driver handle to see if the float is stuck. If the gas stops coming out the vent the float was stuck. It could also be dirt on the needle valve.

+100%
absolutely right. I have encountered the same problem I cleared a needle valve and everything was OK
