No Wiseco Pistons.... (Read 163 times)

mikestrikes Ex Member	No Wiseco Pistons.... 10/07/08 at 08:54:54 I just got this back today... Thank you for your email. We’re sorry but Wiseco does not have a piston available for your motor. Best regards, Wiseco
Back to top	IP Logged

SimonTuffGuy Serious Thumper Alliance Member Offline i like to thump... ;) Posts: 1159 Central PA Gender:	Re: No Wiseco Pistons.... Reply #1 - 10/07/08 at 12:31:33 I've got Weisco pistons in the engine my Festiva runs... But that's for an Escort GT....
Back to top	Simon Pimptiva.com IP Logged

mikestrikes Ex Member	Re: No Wiseco Pistons.... Reply #2 - 10/07/08 at 12:56:55 I wanted a good forged piston for the 650 but cant find one to save my life...
Back to top	IP Logged

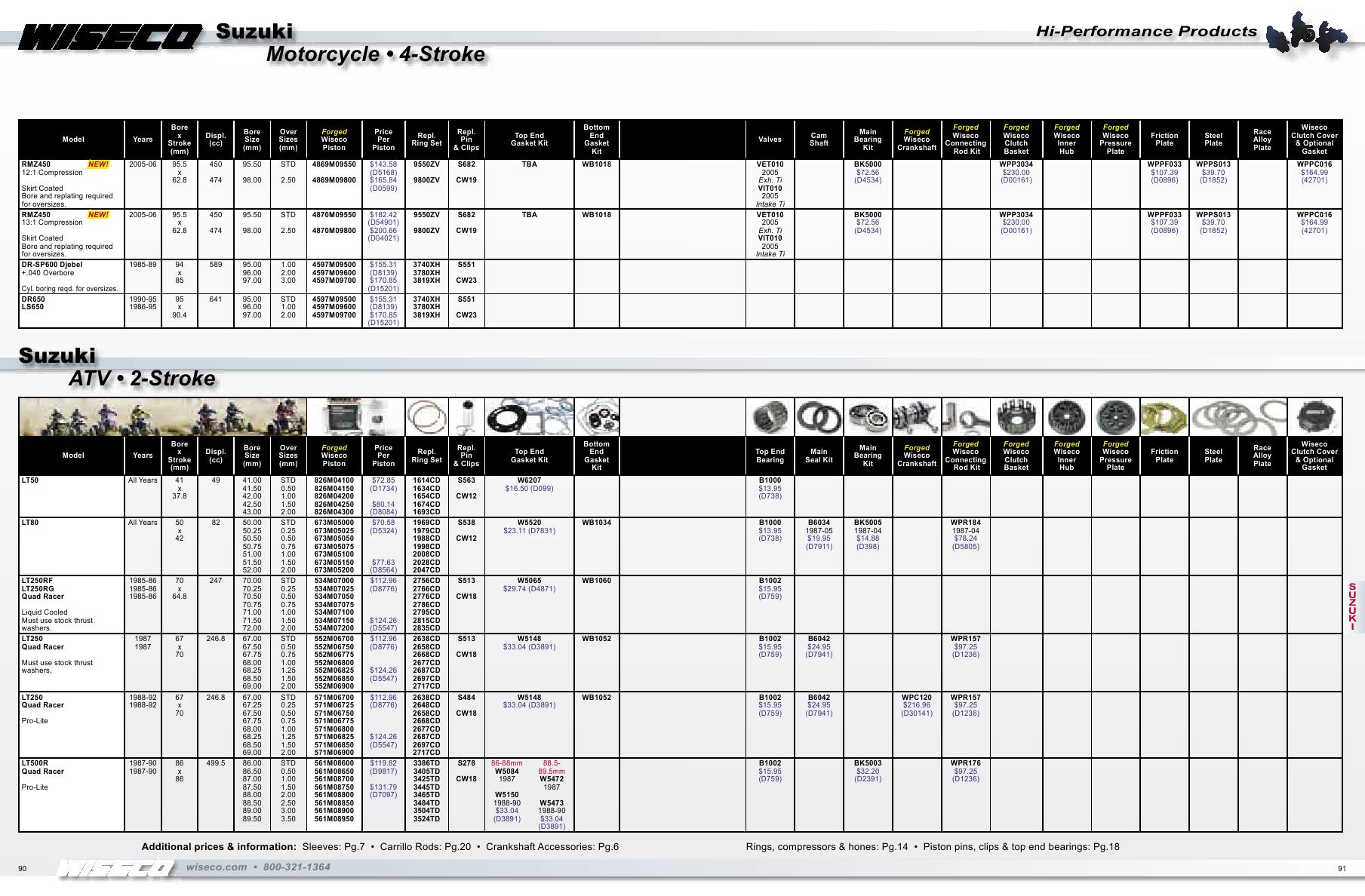

T Mack 1 - FSO Serious Thumper Alliance Member Offline sold 2001 LS650 for a 1986 XLH1100 Posts: 2919 Emmaus,Pa Gender:	Re: No Wiseco Pistons.... Reply #3 - 10/07/08 at 15:10:24 Change the year....... Only I thought std was 94 mm..... LS650 Part Number Price BoreSize/ OverSize Attributes 4597M09500 $182.18 95.00mm / STD Displacement: 641cc Stroke: 90.40mm 4597M09600 $182.18 96.00mm / 1.00mm Displacement: 654cc Stroke: 90.40mm 4597M09700 $200.41 97.00mm / 2.00mm Displacement: 668cc Stroke: 90.40mm
Back to top	« Last Edit: 10/07/08 at 18:45:56 by T Mack 1 - FSO » Engineers design things, Technicians make them work. --- 30% of being mechanical is confidence/30% is knowing to go slow when needed/30% is looking repeatedly at what you have/10% is dumb luck IP Logged

mikestrikes Ex Member	Re: No Wiseco Pistons.... Reply #4 - 10/07/08 at 15:15:52 Stroke is 94.0mm Bore is 94.0mm You must be looking at the wrong listing ? How does changing the year help when all Savage 650 have the same piston ?
Back to top	IP Logged

mikestrikes Ex Member	Re: No Wiseco Pistons.... Reply #5 - 10/07/08 at 15:35:19 Just got a reply back from them. That part number isn't for the Savage LS650 but a dual purpose bike. Different piston.. Description and part number for Suzuki LS650 dual purpose motorcycle. The part number is the 4597M09600
Back to top	IP Logged

T Mack 1 - FSO Serious Thumper Alliance Member Offline sold 2001 LS650 for a 1986 XLH1100 Posts: 2919 Emmaus,Pa Gender:	Re: No Wiseco Pistons.... Reply #6 - 10/07/08 at 18:55:34 mikestrikes wrote on 10/07/08 at 15:35:19: Just got a reply back from them. That part number isn't for the Savage LS650 but a dual purpose bike. Different piston.. Description and part number for Suzuki LS650 dual purpose motorcycle. The part number is the 4597M09600 Dual purpose..... the DR650???
Back to top	Engineers design things, Technicians make them work. --- 30% of being mechanical is confidence/30% is knowing to go slow when needed/30% is looking repeatedly at what you have/10% is dumb luck IP Logged

EssForty Senior Member Offline Sunshine, Surf & Suzuki Posts: 382 Melbourne, FL Gender:	Re: No Wiseco Pistons.... Reply #7 - 10/07/08 at 19:17:30 Looks like Wiseco was suggesting the DR650 and LS650 had interchangeable pistons and overbore kits . See the first section below. My understanding is the Savage has always been 94 x 94. Displacement is 652, not 641. Something is wrong.
Back to top	06 S40, Deuce shield, OEM saddlebags & Engine Guard, ENM tach, Sigma 1106 Speedo, oil pressure & voltage gauges, grip puppies, Kuryakyn Ellipse mirrors, ISO pegs & throttle boss IP Logged

mikestrikes Ex Member	Re: No Wiseco Pistons.... Reply #8 - 10/08/08 at 14:02:10 And I just got this back from Ron Ayers.com Sorry sir, but we can only get you the standard sizing.... So we can get stock bore dia but thats it....
Back to top	IP Logged

mikestrikes

Ex Member

Re: No Wiseco Pistons....
Reply #9 - 10/08/08 at 14:50:28

Guys I'm 90% sure a Chevy 305 piston will work.. But I think the Compression Distance is to much....look at these specs..

Brand: Speed Pro
Product Line: Speed-Pro Hypereutectic Pistons
Part Type: Pistons
Part Number: STL-H534CP
Bore (in): 3.736 in.
Bore (mm): 94.894mm
Piston Style: Flat top, with four valve reliefs
Piston Material: Hypereutectic aluminum
Compression Distance (in): 1.560 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit
Pin Diameter (in): 0.927 in.
Piston Ring Thickness: 5/64 in. x 5/64 in. x 3/16 in.
Quantity: Sold individually.

IP Logged
