Oil Pressure Gauge for S40
08/29/08 at 11:38:05

I'm interested in installing an oil pressure gauge on my 2006 S40. I'd like to have the gage mounted on my handlebars.

Has anyone installed an accurate oil pressure gauge on their bike? If so, who makes a good gauge?
What approach did you use -mechanical gauge or a pressure transducer/sender unit and Electrical gauge? Why?

Is there an existing port that can be tapped for this? Will I need to find some sort of metric thread adapter?

What oil pressure scale would I need? 0-30 PSI? 50? 100? Seems like the pressure is pretty low and I would not want something that barely wiggles the needle, or on the other hand, that pegs it.

Thanks in advance!

Back to top

06 S40, Deuce shield, OEM saddlebags & Engine Guard, ENM tach, Sigma 1106 Speedo, oil pressure & voltage gauges, grip puppies, Kuryakyn Ellipse mirrors, ISO pegs & throttle boss

IP Logged

Moofed Full Member Alliance Member Offline ...and the engine just gleams... Posts: 148 Bloomington, Indiana Gender:	Re: Oil Pressure Gauge for S40 Reply #1 - 08/29/08 at 12:58:17 T Mack has/had one, so I'm sure he'll be in here soon. I remember he had a 30 psi one and it couldn't handle the pressure from cold 20w50 oil, so you might look for a 50psi gauge. Othertimes the pressure quite low, especially at idle with 10w40 oil. All that info is from T Mack's posts.
Back to top	IP Logged

T Mack 1 - FSO

Serious Thumper
Alliance Member

Offline

sold 2001 LS650 for
a 1986 XLH1100

Posts: 2919
Emmaus,Pa
Gender: male

Re: Oil Pressure Gauge for S40
Reply #2 - 08/29/08 at 20:53:46

Howdy,
Yes, I have an oil pressure gauge. I upgraded to a oil filled 60 psi gauge and I'm happy I did (EBay, gauge listed for a harley, $10 plus high shipping ($8). A cool / cold engine with thick oil can hit the 60 (mobil 1 20W-50 V-Twin). BUT.... on a hot day with hot engine at idle it can be 2 psig.

I also upgraded to an egauges metric to NPT adapter for cleaner look (also high shipping).
http://www.egauges.com/vdo_acce.asp?Subgroup=Metric_Adapter_Bushings

Here's the pictures I originally postedt, please note the new upgraded parts look much nicer
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1194960603/12#12.

I mounted mine to the handle bar next to my tach which I also recently replaced (Paminator got the old one).

There is an "Oil pressure test port" on the right side, down by the brake pedal (see link above.. It faces front. Thread is M14-1.25. The eGauges website has a adapter to go to 1/8" NPT (national pipe thread for those that don't know). The Gauge is already 1/8" NPT which made it easy getting elbows and barbed fittings.

I'll take new pict's tomorrow and post.

Back to top

Engineers design things, Technicians make them work.
---
30% of being mechanical is confidence/30% is knowing to go slow when needed/30% is looking repeatedly at what you have/10% is dumb luck Wink

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Oil Pressure Gauge for S40 Reply #3 - 08/29/08 at 21:33:34 And don't forget http://suzukisavage.com/cgi-bin/YaBB.pl?num=1216396521/6#6
Back to top	Versey's Place Tech Section Index IP Logged

EssForty

Senior Member

Offline

Sunshine, Surf &
Suzuki

Posts: 382
Melbourne, FL
Gender: male

Re: Oil Pressure Gauge for S40
Reply #4 - 08/30/08 at 04:20:53

T Mack:

Perfect. Thanks for the info. That's exactly what I needed. I'll check out your updated pics later.

Verslagen:

The Vapor unit looks cool, but I've already got a digital tach and the Sigma cycle computer that gives me almost all the same information. Did it for half the price of the Vapor .(..well, that is if I paid myself $1/hr for labor. ) While I was at it, I also installed LED turn signal indicators and now I do not have to look down at the tank to see speed, rpms, or turn signals.

Back to top

06 S40, Deuce shield, OEM saddlebags & Engine Guard, ENM tach, Sigma 1106 Speedo, oil pressure & voltage gauges, grip puppies, Kuryakyn Ellipse mirrors, ISO pegs & throttle boss

IP Logged

T Mack 1 - FSO

Serious Thumper
Alliance Member

Offline

sold 2001 LS650 for
a 1986 XLH1100

Posts: 2919
Emmaus,Pa
Gender: male

Re: Oil Pressure Gauge for S40
Reply #5 - 08/30/08 at 10:23:26

As promised....Picture (we all love pictures.... Grin

) Note: Air temp was 80, bike was driven approximately 15 minutes, and at just over 1000 rpm we get 4 or 5 PSIG using Mobil 1, 20W-50 V-twin oil.

see bigger image:
Click -> My Gauges

Back side shot:
Click -> Backside

Picture of the test port with the eGauge adapter plus a 1/8" NPT barbed fitting & the hose.
Click-> Test port shot

Back to top

Engineers design things, Technicians make them work.
---
30% of being mechanical is confidence/30% is knowing to go slow when needed/30% is looking repeatedly at what you have/10% is dumb luck Wink

IP Logged

RoadToad YaBB Newbies Offline Posts: 11 Oregon Gender:	Re: Oil Pressure Gauge for S40 Reply #6 - 08/30/08 at 12:41:55 T-Mack.... Great looking gauges, might i ask where the tach was found? any model/part no.? thanx
Back to top	IP Logged

EssForty

Senior Member

Offline

Sunshine, Surf &
Suzuki

Posts: 382
Melbourne, FL
Gender: male

Re: Oil Pressure Gauge for S40
Reply #7 - 08/30/08 at 15:42:58

T Mack:

Great setup. Very classic look. The picture of the port is helpful and confirmed that I'm looking at the right plug. I ordered the adapter form egauges- check that...... I ordered "shipping" for $12 and they threw in the adapter for about $7. Cheesy

, and it is on its way.

Anyway, I've got a 0-30 PSI oil gauge in my garage so the price is right, but I can go up in size if needed. Since I'm in Florida, where the outside temp rarely drops below 50 degrees, and 70-95 F is the range most of the year, do you think I'll see more than 25 psi under normal operation? I'm using 20w50 synthetic as well.

Back to top

06 S40, Deuce shield, OEM saddlebags & Engine Guard, ENM tach, Sigma 1106 Speedo, oil pressure & voltage gauges, grip puppies, Kuryakyn Ellipse mirrors, ISO pegs & throttle boss

IP Logged

T Mack 1 - FSO

Serious Thumper
Alliance Member

Offline

sold 2001 LS650 for
a 1986 XLH1100

Posts: 2919
Emmaus,Pa
Gender: male

Re: Oil Pressure Gauge for S40
Reply #8 - 08/30/08 at 20:11:15

EssForty wrote on 08/30/08 at 15:42:58:

T Mack:

Great setup. Very classic look. The picture of the port is helpful and confirmed that I'm looking at the right plug. I ordered the adapter form egauges- check that...... I ordered "shipping" for $12 and they threw in the adapter for about $7. Cheesy

, and it is on its way.

Anyway, I've got a 0-30 PSI oil gauge in my garage so the price is right, but I can go up in size if needed. Since I'm in Florida, where the outside temp rarely drops below 50 degrees, and 70-95 F is the range most of the year, do you think I'll see more than 25 psi under normal operation? I'm using 20w50 synthetic as well.

A forty would be better, I've never seen a 50, 60 is best. This morning it was close to 70 and it was 40 psig. It should be noted that most oil gauges will go over the dail number BUT...... not too good for it.

RoadToad wrote on 08/30/08 at 12:41:55:

T-Mack....
Great looking gauges, might i ask where the tach was found? any model/part no.? thanx

Found on eBay, but here is the info.....
Drag Specialties model DS - 244133
http://www.dragspecialties.com/fatbook
or
http://www.dragspecialties.com/fatbook/6/244/5932407?q=DS-244133

Back to top

Engineers design things, Technicians make them work.
---
30% of being mechanical is confidence/30% is knowing to go slow when needed/30% is looking repeatedly at what you have/10% is dumb luck Wink

IP Logged

EssForty

Senior Member

Offline

Sunshine, Surf &
Suzuki

Posts: 382
Melbourne, FL
Gender: male

Re: Oil Pressure Gauge for S40
Reply #9 - 08/31/08 at 07:42:30

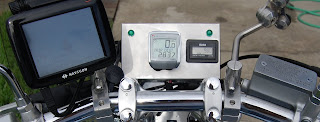

Sounds good. I found a digital oil pressure gauge & sending unit that will work in that range. I've got the Sigma Bike computer, ENM digital tach, turn signal LED's and a switched power accessory socket that powers my GPS unit all in one box I built and mounted on the riser. The GPS is suction-cup mounted to my windshield and so I take it off when I don't need it. GPS is really handy, but can be distracting. I used it to check the calibration of my Sigma against my Suzuki speedo and found that the stock speedo reads 2 mph slow.
